15120402601000

HARTING

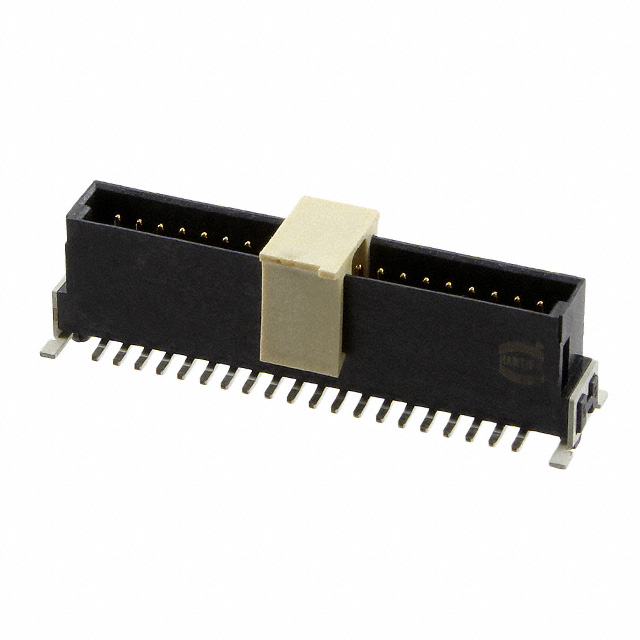

Image may be representation. See specifications for product details.

Product Overview

Part Number:	15120402601000
Manufacturer/Brand:	HARTING
Product description	CONN HEADER 40POS SMT GOLD
Datasheets:	1.15120402601000.pdf 2.15120402601000.pdf 3.15120402601000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15133 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15133 pcs

Reference Price (In US Dollars)

1 pcs: $2.229

10 pcs: $2.139

25 pcs: $1.961

50 pcs: $1.871

100 pcs: $1.782

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.229

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 15120402601000

Part Number	15120402601000	Manufacturer	HARTING
Description	CONN HEADER 40POS SMT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15133 pcs	Data sheet	1.15120402601000.pdf 2.15120402601000.pdf 3.15120402601000.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	har-flex®	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	1195-3375-1
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	40
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.319" (8.10mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Pick and Place, Solder Retention	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 40 position 0.050" (1.27mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	0.157" (4.00mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
