HARTING
| Part Number | 14311016402000 | Manufacturer | HARTING |
|---|---|---|---|

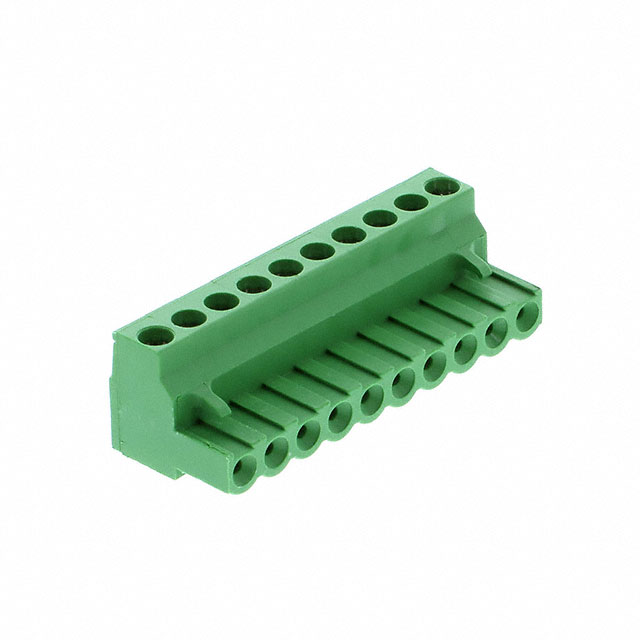

| Description | TERM BLOCK PLUG 10POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10878 pcs | Data sheet | 14311016402000.pdf |
| Wire Strip Length | 6-7.5mm | Wire Gauge or Range - mm² | 0.05-2.5mm² |
| Wire Gauge or Range - AWG | 12-30 AWG | Voltage - UL | 600V |
| Type | Plug, Female Sockets | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Termination Style | Screw | Series | har-flexicon® |
| Screw Size | M3 | Positions Per Level | 10 |
| Plug Wire Entry | 90° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1195-6079 14311016402000-ND |
| Operating Temperature | -40°C ~ 110°C | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.610" (15.49mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon, Polyphthalamide (PPA) | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 10 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Green |
