HARTING
| Part Number | 14310213101000 | Manufacturer | HARTING |
|---|---|---|---|

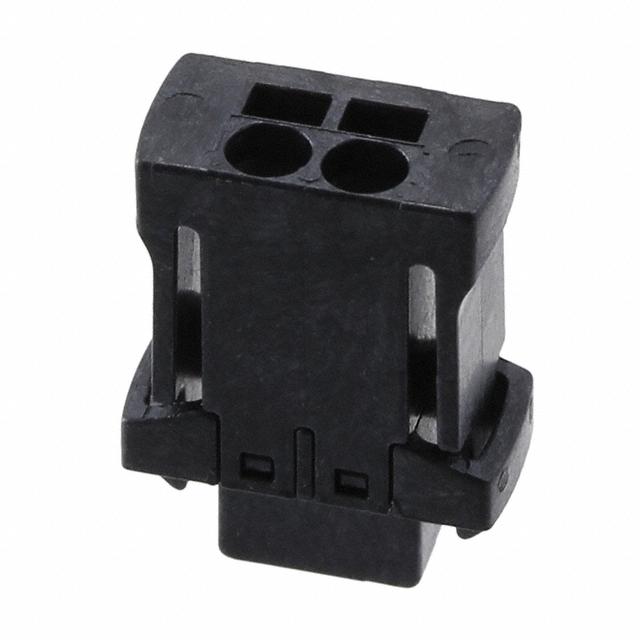

| Description | TERM BLOCK PLUG 2POS STR 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94090 pcs | Data sheet | 14310213101000.pdf |
| Wire Strip Length | 6mm | Wire Gauge or Range - mm² | 0.14-0.5mm² |
| Wire Gauge or Range - AWG | 20-26 AWG | Voltage - UL | 160V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Spring Cage, Tension Clamp | Series | har-flexicon® |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | 180° | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 1195-3599 |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.193" (4.90mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Header Orientation | - |
| Features | Latch Lock | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.100" (2.54mm) 180° Free Hanging (In-Line) |
| Current - UL | 6A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
