HARTING

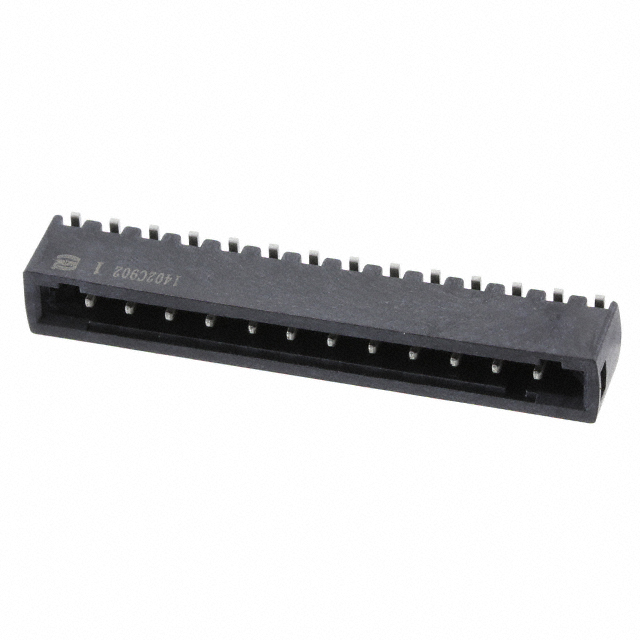

| Part Number | 14111213002000 | Manufacturer | HARTING |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36365 pcs | Data sheet | 14111213002000.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 160V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | har-flexicon® |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | - | Pitch | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Other Names | 1195-3644-2 |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.197" (5.00mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Header Orientation | 90°, Right Angle |
| Features | Board Guide | Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.100" (2.54mm) 90°, Right Angle Surface Mount |
| Current - UL | 6A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
