HARTING
| Part Number | 09683635813 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB PLUG 25POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15661 pcs | Data sheet | 1.09683635813.pdf2.09683635813.pdf |
| Wire Gauge | - | Voltage Rating | - |
| Termination | Solder | Shell Size, Connector Layout | 3 (DB, B) |
| Shell Material, Finish | Steel | Series | - |
| Packaging | Bulk | Other Names | 09683635813-ND 1195-7996 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions | 25 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Features | Board Lock, Grounding Indents |

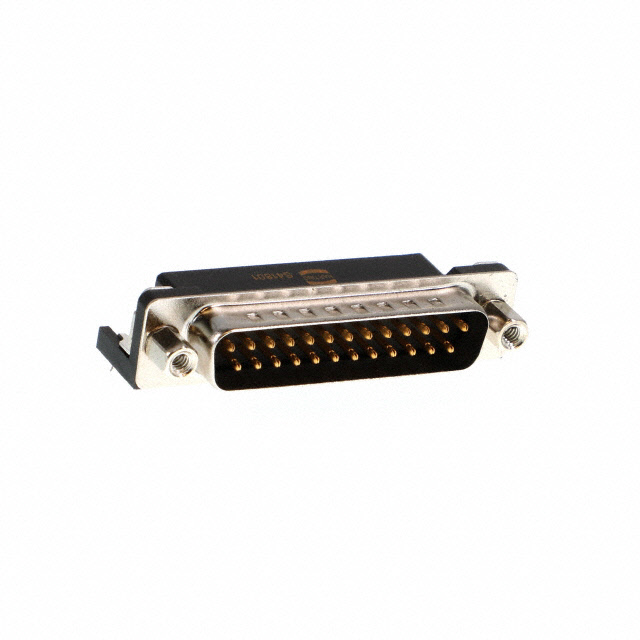

| Detailed Description | 25 Position D-Sub Plug, Male Pins Connector | Current Rating | 6.5A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | Stamped | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold or Gold-Palladium | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub | Color | - |
| Backset Spacing | 0.318" (8.08mm) |
