09561004701

HARTING

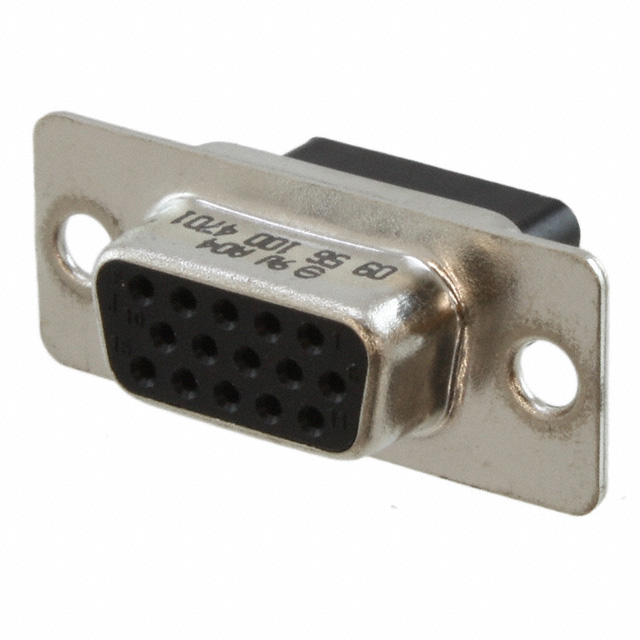

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09561004701
Manufacturer/Brand:	HARTING
Product description	D SUB HD FE CRIMP SHELL 15P
Datasheets:	09561004701.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44804 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44804 pcs

Reference Price (In US Dollars)

1 pcs: $0.654

10 pcs: $0.593

25 pcs: $0.557

50 pcs: $0.532

100 pcs: $0.508

250 pcs: $0.46

500 pcs: $0.424

1000 pcs: $0.363

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.654

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09561004701

Part Number	09561004701	Manufacturer	HARTING
Description	D SUB HD FE CRIMP SHELL 15P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44804 pcs	Data sheet	09561004701.pdf
Shell Size, Connector Layout	1 (DE, E) High Density	Shell Material, Finish	Steel, Tin Plated
Shell Finish Thickness	-	Series	-
Packaging	Bulk	Other Names	1195-2294 9561004701
Operating Temperature	-55°C ~ 105°C	Number of Rows	3
Number of Positions	15	Note	Contacts Not Included
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Flange Feature	Housing/Shell (Unthreaded)	Features	-
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Detailed Description	Receptacle for Female Contacts Housing D-Sub, High Density Connector 15 Position
Contact Type	Signal	Connector Type	Receptacle for Female Contacts
Connector Style	D-Sub, High Density	Color	-
