09195506323

HARTING

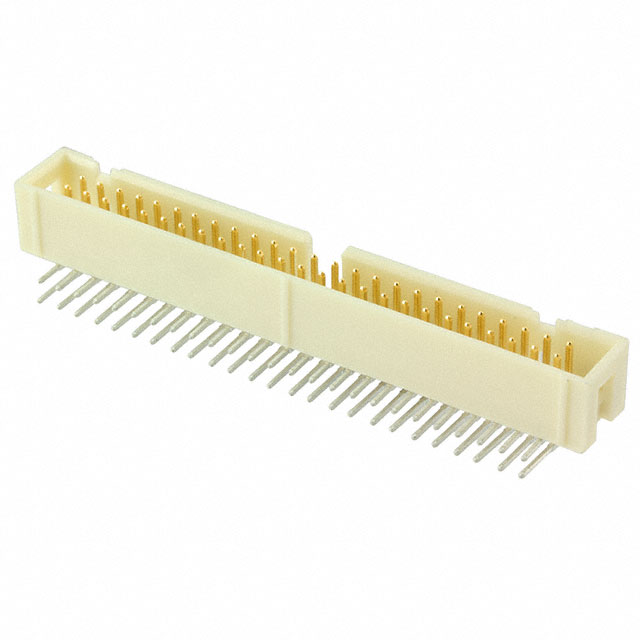

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09195506323
Manufacturer/Brand:	HARTING
Product description	CONN HEADER 50POS T/H R/A
Datasheets:	1.09195506323.pdf 2.09195506323.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15469 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15469 pcs

Reference Price (In US Dollars)

1 pcs: $2.254

10 pcs: $2.16

25 pcs: $1.972

50 pcs: $1.878

100 pcs: $1.785

250 pcs: $1.597

500 pcs: $1.503

1000 pcs: $1.315

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.254

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09195506323

Part Number	09195506323	Manufacturer	HARTING
Description	CONN HEADER 50POS T/H R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15469 pcs	Data sheet	1.09195506323.pdf 2.09195506323.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SEK	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	09195506323-ND 1195-4598
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	50
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Insulation Height	0.366" (9.30mm)
Insulation Color	Beige	Ingress Protection	-
Features	Keying Slot	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.114" (2.90mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	-
Contact Finish - Mating	-	Connector Type	Header
Applications	-
