09195106953

HARTING

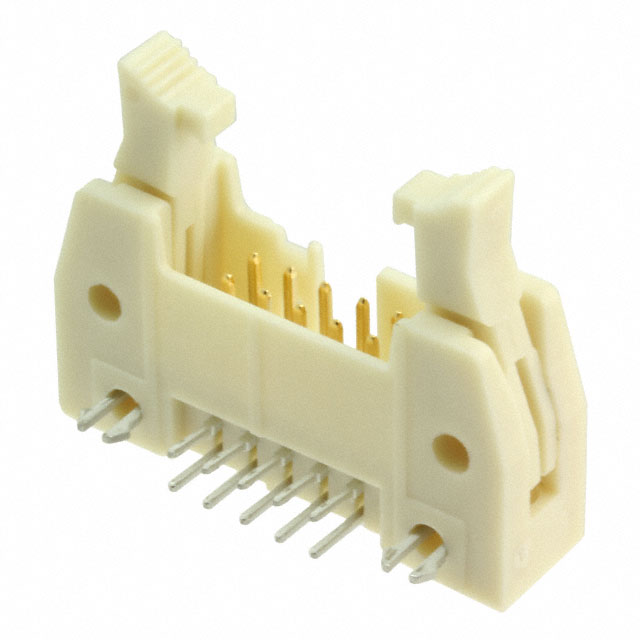

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09195106953
Manufacturer/Brand:	HARTING
Product description	CONN HEADER 10POS T/H R/A
Datasheets:	09195106953.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23361 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23361 pcs

Reference Price (In US Dollars)

1 pcs: $1.438

10 pcs: $1.378

25 pcs: $1.264

50 pcs: $1.206

100 pcs: $1.149

250 pcs: $1.005

500 pcs: $0.976

1000 pcs: $0.833

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.438

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09195106953

Part Number	09195106953	Manufacturer	HARTING
Description	CONN HEADER 10POS T/H R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23361 pcs	Data sheet	09195106953.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SEK	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	09195106953-ND 1195-4589
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Insulation Height	0.335" (8.51mm)
Insulation Color	Beige	Ingress Protection	-
Features	Board Lock, Keying Slot	Fastening Type	Latch Lock/Eject Hooks, Long
Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.114" (2.90mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	-
Contact Finish - Mating	-	Connector Type	Header
Applications	-
