HARTING

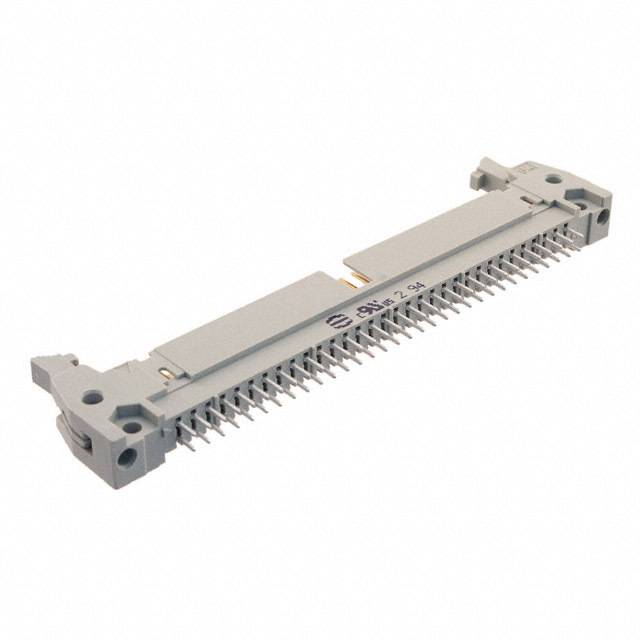

| Part Number | 09185646904 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN HEADER 64POS T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19979 pcs | Data sheet | 09185646904.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | SEK | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.650" (16.51mm) | Other Names | 1195-1767 9185646904 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 64 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.681" (17.30mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Keying Slot, Mounting Flange | Fastening Type | Latch Lock/Eject Hooks, Long |
| Detailed Description | Connector Header Through Hole 64 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.114" (2.90mm) |
| Contact Length - Mating | 0.228" (5.80mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | - | Connector Type | Header |
| Applications | - |
