09185145904

HARTING

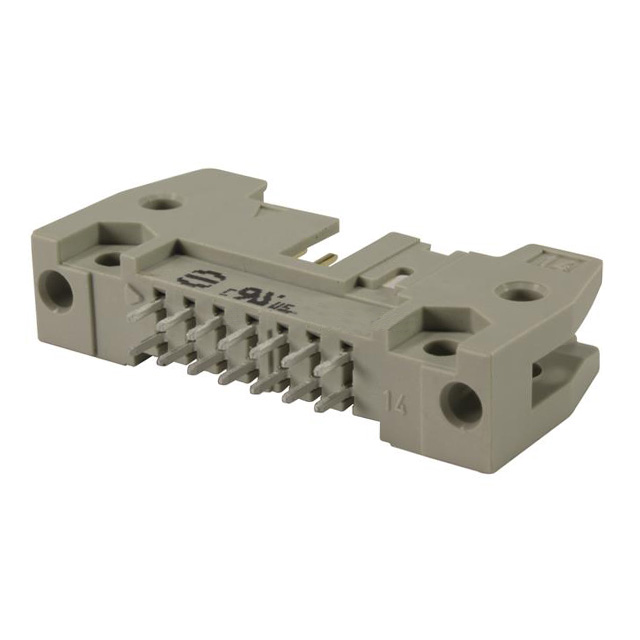

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09185145904
Manufacturer/Brand:	HARTING
Product description	CONN HEADER 14POS T/H GOLD
Datasheets:	09185145904.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34502 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34502 pcs

Reference Price (In US Dollars)

1 pcs: $0.957

10 pcs: $0.867

25 pcs: $0.814

50 pcs: $0.779

100 pcs: $0.743

250 pcs: $0.673

500 pcs: $0.62

1000 pcs: $0.531

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.957

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09185145904

Part Number	09185145904	Manufacturer	HARTING
Description	CONN HEADER 14POS T/H GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34502 pcs	Data sheet	09185145904.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SEK	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.650" (16.51mm)	Other Names	09185145904-ND 1195-5996
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.681" (17.30mm)
Insulation Color	Gray	Ingress Protection	-
Features	Keying Slot, Mounting Flange	Fastening Type	Latch Lock/Eject Hooks, Long
Detailed Description	Connector Header Through Hole 14 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.114" (2.90mm)
Contact Length - Mating	0.228" (5.80mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
