Harwin Inc.

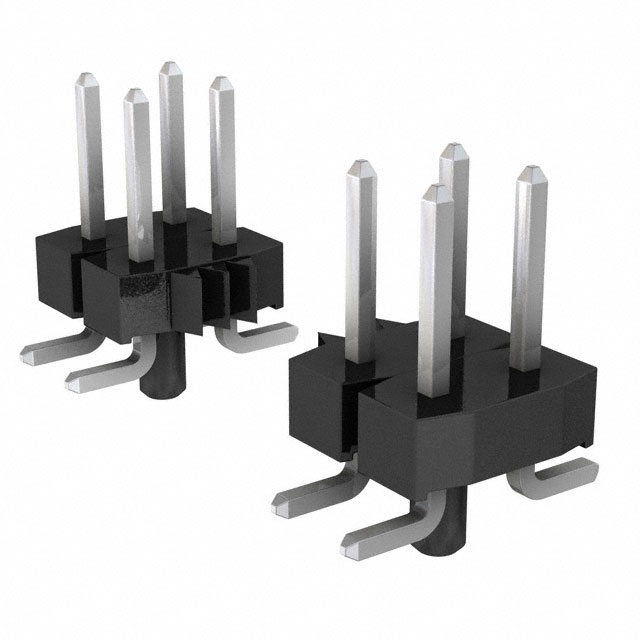

| Part Number | M22-5321346R | Manufacturer | Harwin Inc. |
|---|---|---|---|
| Description | 13+13 DIL SMT PICK/PLACE HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57694 pcs | Data sheet | 1.M22-5321346R.pdf2.M22-5321346R.pdf |
| Voltage - DC Spark Over (Nom) | Phosphor Bronze | Type Attributes | - |
| Termination | Solder | Style | Board to Board |
| Stacking Direction | Male Pin | Shrouding | 0.079" (2.00mm) |
| Shield Termination | Square | Series | M22 |
| Row Spacing - Mating | Unshrouded | RoHS Status | Tape & Reel (TR) |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | - | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 26 |
| Number of Contacts | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | M22-5321346R |
| Length - Post (Mating) | 4.8mm, 6.9mm, 9.6mm | Insulation Material | Tin |
| Insulation Height | - | Features | Pick and Place |
| Expanded Description | 26 Positions Header, Cuttable Connector 0.079" (2.00mm) Surface Mount Tin | Description | 13+13 DIL SMT PICK/PLACE HDR |
| Current Rating | 1A per Contact | Current - Max/Contact | - |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.079" (2.00mm) |
| Contact Finish Thickness - Post | Polyamide (PA6T), Nylon 6T | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | - | Contact Finish - Mating | 0.059" (1.50mm) |
| Connector Type | Header, Cuttable | Actual Diameter | Black |
