Harwin Inc.

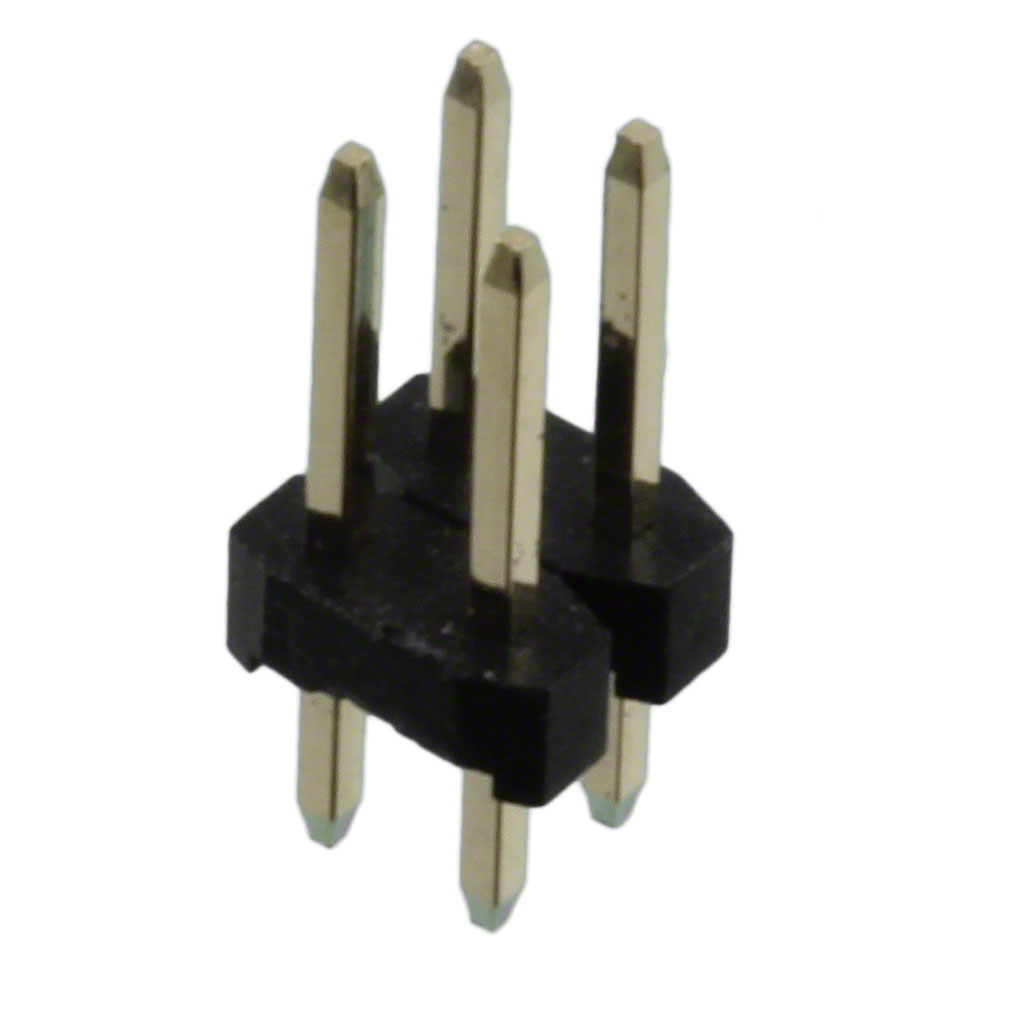

| Part Number | M22-2580205 | Manufacturer | Harwin Inc. |
|---|---|---|---|
| Description | 2+2 DIL PIN HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 598676 pcs | Data sheet | M22-2580205.pdf |
| Voltage - DC Spark Over (Nom) | Phosphor Bronze | Type Attributes | - |
| Termination | Solder | Style | Board to Board or Cable |
| Stacking Direction | Male Pin | Shrouding | 0.079" (2.00mm) |
| Shield Termination | Square | Series | M22 |
| Row Spacing - Mating | Unshrouded | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.091" (2.30mm) | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 4 |
| Number of Contacts | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | M22-2580205 |
| Length - Post (Mating) | - | Insulation Material | - |
| Insulation Height | 0.346" (8.80mm) | Features | - |
| Expanded Description | 4 Positions Header, Cuttable Connector 0.079" (2.00mm) Through Hole Gold | Description | 2+2 DIL PIN HDR |
| Current Rating | 1A per Contact | Current - Max/Contact | - |
| Contact Length - Post | 0.197" (5.00mm) | Contact Length - Mating | 0.079" (2.00mm) |
| Contact Finish Thickness - Post | Polyamide (PA6T), Nylon 6T | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | - | Contact Finish - Mating | 0.059" (1.50mm) |
| Connector Type | Header, Cuttable | Actual Diameter | Black |
