M20-9981246

Harwin Inc.

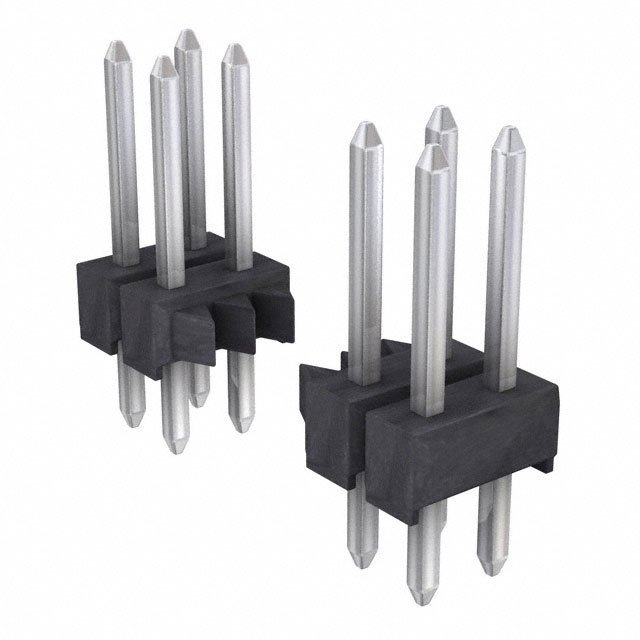

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M20-9981246
Manufacturer/Brand:	H&D Wireless
Product description	2X12POS DIL VERTICAL PIN HEADER
Datasheets:	1.M20-9981246.pdf 2.M20-9981246.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	131368 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 131368 pcs

Reference Price (In US Dollars)

1 pcs: $0.275

10 pcs: $0.258

100 pcs: $0.198

500 pcs: $0.172

1000 pcs: $0.142

5000 pcs: $0.125

10000 pcs: $0.116

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.275

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M20-9981246

Part Number	M20-9981246	Manufacturer	Harwin Inc.
Description	2X12POS DIL VERTICAL PIN HEADER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	131368 pcs	Data sheet	1.M20-9981246.pdf 2.M20-9981246.pdf
Voltage - DC Spark Over (Nom)	Brass	Type Attributes	-
Termination	Solder	Style	Board to Board or Cable
Stacking Direction	Male Pin	Shrouding	0.100" (2.54mm)
Shield Termination	Square	Series	M20
Row Spacing - Mating	Unshrouded	RoHS Status	Bulk
Ripple Current - Low Frequency	-	Pitch - Connector	-
Overall Contact Length	0.118" (3.00mm)	Other Names	952-1917 M209981246
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions	24	Number of Contacts	-
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Material - Insulation	All
Manufacturer Standard Lead Time	10 Weeks	Manufacturer Part Number	M20-9981246
Length - Post (Mating)	9.94mm, 10.64mm, 11.04mm, 16.54mm	Insulation Material	Tin
Insulation Height	0.460" (11.68mm)	Features	-
Expanded Description	24 Positions Header, Cuttable Connector 0.100" (2.54mm) Through Hole Tin	Description	2X12POS DIL VERTICAL PIN HEADER
Current Rating	3A per Contact	Current - Max/Contact	-
Contact Length - Post	0.240" (6.10mm)	Contact Length - Mating	0.100" (2.54mm)
Contact Finish Thickness - Post	Polyamide (PA6T), Nylon 6T	Contact Finish Thickness - Mating	Tin
Contact Finish - Post	-	Contact Finish - Mating	0.100" (2.54mm)
Connector Type	Header, Cuttable	Actual Diameter	Black
