Harwin Inc.

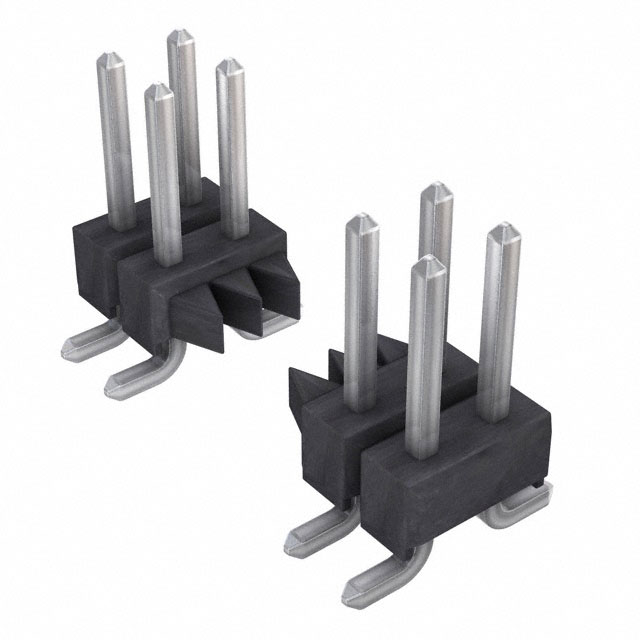

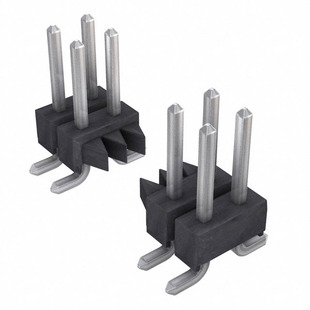

| Part Number | M20-8760546R | Manufacturer | Harwin Inc. |
|---|---|---|---|
| Description | 05+05 DIL VERT SMT HDR 350/RL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 190350 pcs | Data sheet | 1.M20-8760546R.pdf2.M20-8760546R.pdf |
| Voltage - DC Spark Over (Nom) | Brass | Type Attributes | - |
| Termination | Solder | Style | Board to Board or Cable |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | M20 |
| Row Spacing - Mating | Unshrouded | RoHS Status | Tape & Reel (TR) |
| Ripple Current - Low Frequency | - | Pitch - Connector | 250V |
| Overall Contact Length | - | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 10 |
| Number of Contacts | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | M20-8760546R |
| Length - Post (Mating) | 11.53mm, 12.23mm, 12.63mm, 18.13mm | Insulation Material | Tin |
| Insulation Height | - | Features | Pick and Place |
| Expanded Description | 10 Positions Header, Cuttable Connector 0.100" (2.54mm) Surface Mount Tin | Description | 05+05 DIL VERT SMT HDR 350/RL |
| Current Rating | 3A per Contact | Current - Max/Contact | - |
| Contact Length - Post | 0.228" (5.80mm) | Contact Length - Mating | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | Polyamide (PA6T), Nylon 6T | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | - | Contact Finish - Mating | 0.100" (2.54mm) |
| Connector Type | Header, Cuttable | Actual Diameter | Black |
