76PSB05T

Grayhill, Inc.

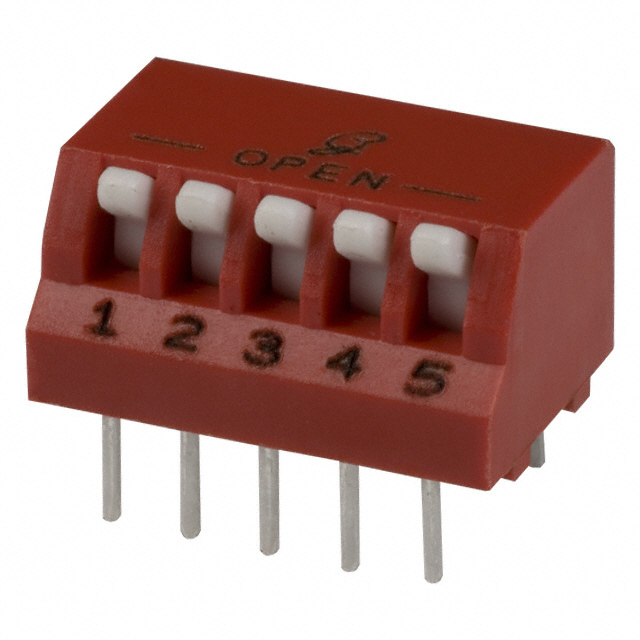

Image may be representation. See specifications for product details.

Product Overview

Part Number:	76PSB05T
Manufacturer/Brand:	Grayhill, Inc.
Product description	SWITCH PIANO DIP SPST 150MA 30V
Datasheets:	76PSB05T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	56358 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 56358 pcs

Reference Price (In US Dollars)

1 pcs: $0.527

18 pcs: $0.497

36 pcs: $0.477

54 pcs: $0.447

108 pcs: $0.436

252 pcs: $0.386

504 pcs: $0.365

1008 pcs: $0.325

5004 pcs: $0.284

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.527

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 76PSB05T

Part Number	76PSB05T	Manufacturer	Grayhill, Inc.
Description	SWITCH PIANO DIP SPST 150MA 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56358 pcs	Data sheet	76PSB05T.pdf
Washable	No	Voltage Rating	30VDC
Termination Style	PC Pin	Series	76
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	GH7138	Operating Temperature	-40°C ~ 85°C
Number of Positions	5	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	2,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Length	0.580" (14.73mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.301" (7.65mm)
Features	-	Electrical Life	2,000 Cycles
Detailed Description	Dip Switch SPST 5 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC	Current Rating	150mA
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	SPST	Body Material	Thermoplastic
Actuator Type	Piano	Actuator Level	Raised
