Grayhill, Inc.

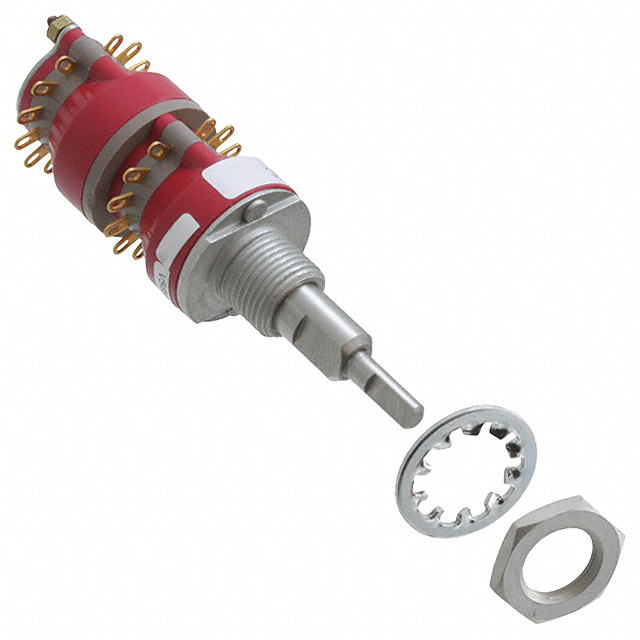

| Part Number | 71C301106N-1112NC | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH ROTARY 6/12POS 250MA 115V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2503 pcs | Data sheet | 71C301106N-1112NC.pdf |
| Voltage Rating - DC | 30V | Voltage Rating - AC | 115V |
| Termination Style | Solder Lug | Series | 71 |
| Panel Cutout Dimensions | - | Other Names | 71C30-1BE-1AL 71C30-1BE-1AL-ND 71C301BE1AL Q6321585H |
| Operating Force | 2.880 ~ 23gfm | Number of Positions | 6, 12 |
| Number of Poles per Deck | 1 | Number of Decks | 1 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Fixed, Continuous | Features | - |
| Detailed Description | Rotary Switch 6, 12 Position SP6T, SP12T 250mA (AC/DC) 115VAC Panel Mount | Depth Behind Panel | 35.94mm |
| Current Rating | 250mA (AC/DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Silver Alloy | Contact Finish | - |
| Circuit per Deck | SP6T, SP12T | Angle of Throw | 30° |
| Actuator Type | Concentric (3.17mm Dia, 6.35mm Dia) | Actuator Length | 9.53mm |
