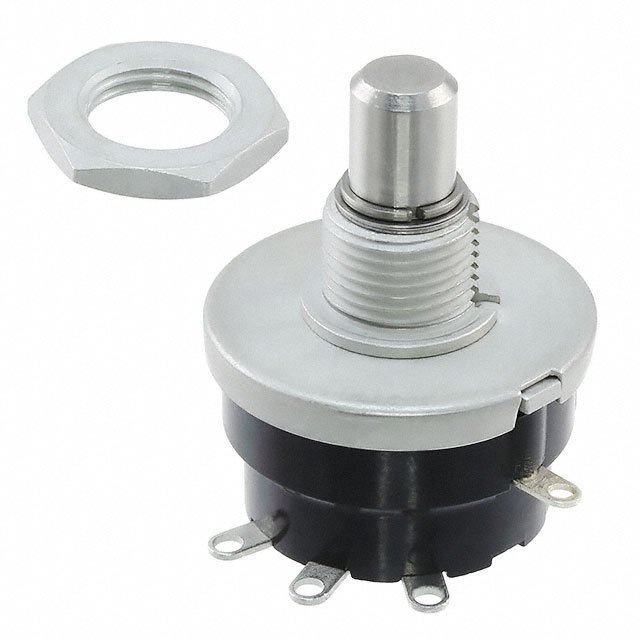

Grayhill, Inc.
| Part Number | 24001-03N | Manufacturer | Grayhill, Inc. |
|---|---|---|---|
| Description | SWITCH ROTARY 3POS 1A 115V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3873 pcs | Data sheet | 24001-03N.pdf |
| Voltage Rating - DC | 28V | Voltage Rating - AC | 115V |
| Termination Style | Solder Lug | Series | 24 |
| Panel Cutout Dimensions | - | Other Names | 24001-03N-ND 2400103N GH7668 |
| Operating Force | 8.641gfm | Number of Positions | 3 |
| Number of Poles per Deck | 1 | Number of Decks | 1 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Fixed | Features | - |
| Detailed Description | Rotary Switch 3 Position SP3T 1A (AC/DC) 115VAC Panel Mount | Depth Behind Panel | 14.68mm |
| Current Rating | 1A (AC/DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Phosphor Bronze | Contact Finish | Silver |
| Circuit per Deck | SP3T | Angle of Throw | 36° |
| Actuator Type | Flatted (6.35mm Dia) | Actuator Length | 7.92mm |
