14AP-L1-02-G

Grayhill, Inc.

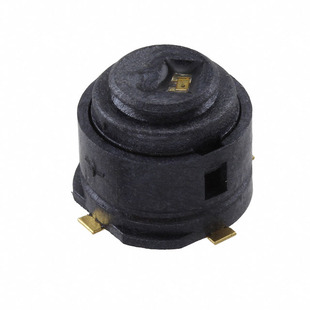

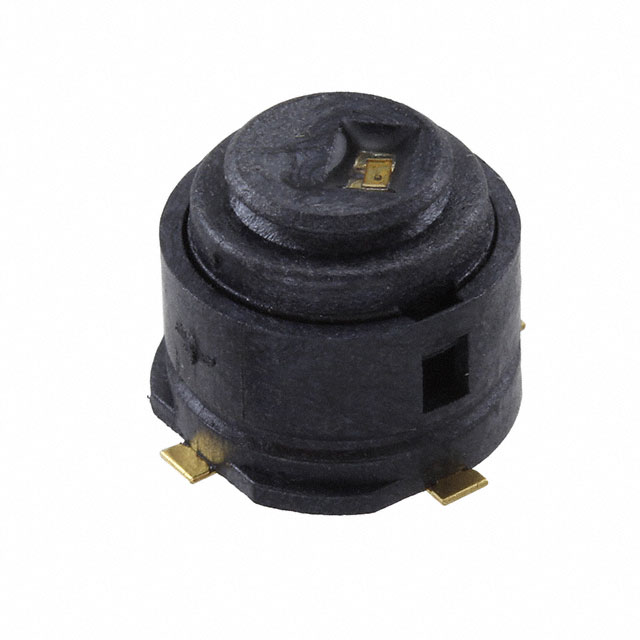

Image may be representation. See specifications for product details.

Product Overview

Part Number:	14AP-L1-02-G
Manufacturer/Brand:	Grayhill, Inc.
Product description	SWITCH PUSH SPST-NO .1A 30V
Datasheets:	14AP-L1-02-G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18243 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 18243 pcs

Reference Price (In US Dollars)

1 pcs: $1.68

10 pcs: $1.598

25 pcs: $1.518

50 pcs: $1.478

100 pcs: $1.438

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.68

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 14AP-L1-02-G

Part Number	14AP-L1-02-G	Manufacturer	Grayhill, Inc.
Description	SWITCH PUSH SPST-NO .1A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18243 pcs	Data sheet	14AP-L1-02-G.pdf
Voltage Rating - DC	30V	Type	Keyswitch, Illuminated
Termination Style	SMD (SMT) Tab	Switch Function	Off-Mom
Series	14	Panel Cutout Dimensions	-
Packaging	Cut Tape (CT)	Other Names	GH7585CT
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.85 VDC
Illumination Type, Color	LED, Green	Features	Board Guide
Electrical Life	200,000 Cycles	Detailed Description	Pushbutton Switch SPST-NO Keyswitch, Illuminated Surface Mount
Current Rating	100mA (DC)	Color - Actuator/Cap	Clear
Circuit	SPST-NO	Actuator Type	Round, Button
