GPA040A120L-FD

Global Power Technologies Group

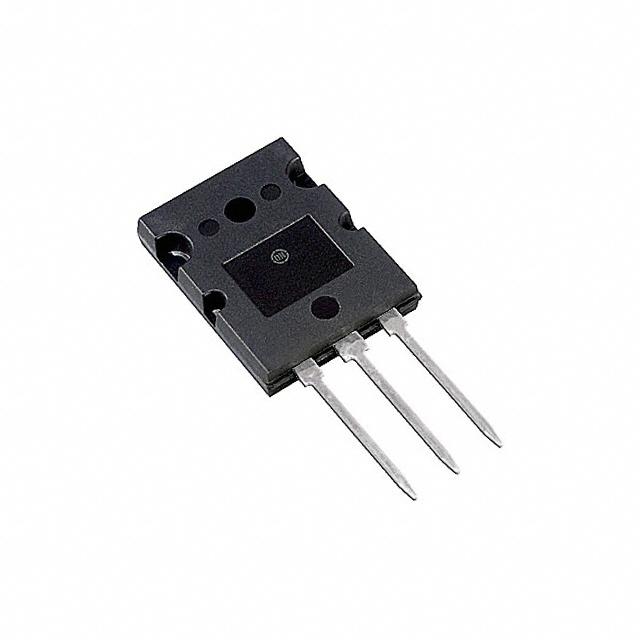

Image may be representation. See specifications for product details.

Product Overview

Part Number:	GPA040A120L-FD
Manufacturer/Brand:	Global Power Technologies Group
Product description	IGBT 1200V 80A 480W TO264
Datasheets:	GPA040A120L-FD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15223 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15223 pcs

Reference Price (In US Dollars)

1 pcs: $2.529

10 pcs: $2.276

25 pcs: $2.074

100 pcs: $1.871

250 pcs: $1.72

500 pcs: $1.568

1000 pcs: $1.365

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.529

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of GPA040A120L-FD

Part Number	GPA040A120L-FD	Manufacturer	Global Power Technologies Group
Description	IGBT 1200V 80A 480W TO264	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15223 pcs	Data sheet	GPA040A120L-FD.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 40A
Test Condition	600V, 40A, 5 Ohm, 15V	Td (on/off) @ 25°C	55ns/200ns
Switching Energy	5.3mJ (on), 1.1mJ (off)	Supplier Device Package	TO-264
Series	-	Reverse Recovery Time (trr)	200ns
Power - Max	480W	Packaging	Tube
Package / Case	TO-264-3, TO-264AA	Other Names	1560-1222-1 1560-1222-1-ND 1560-1222-5
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	Trench Field Stop
Gate Charge	480nC	Detailed Description	IGBT Trench Field Stop 1200V 80A 480W Through Hole TO-264
Current - Collector Pulsed (Icm)	120A	Current - Collector (Ic) (Max)	80A
