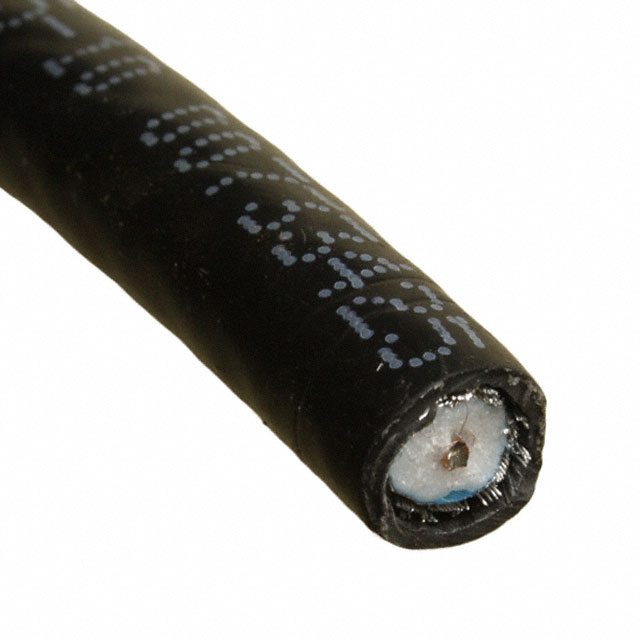

General Cable
| Part Number | C5785.41.01 | Manufacturer | General Cable |
|---|---|---|---|
| Description | CABLE COAXIAL RG6 18AWG 1000' | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 572 pcs | Data sheet | C5785.41.01.pdf |
| Wire Gauge | 18 AWG (0.82mm²) | VoP, Velocity of Propagation | 85 |
| Usage | CATV | Shield Type | Foil, Braid |
| Shield Material | Flexfoil®, Aluminum | Shield Coverage | 100%, 60%, 100%, 40% |
| Series | - | Other Names | C5785-1000 C57854101 C5785A.41.01 |
| Operating Temperature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length | 1000.0' (304.80m) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Jacket Color | Black |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Jacket (Insulation) Diameter | 0.292" (7.42mm) |
| Impedance | 75 Ohms | Features | Quad Shield |
| Dielectric Material | Solid Polyethylene (PE) | Dielectric Diameter | 0.177" (4.50mm) |
| Detailed Description | Coaxial Cable 18 AWG (0.82mm²) RG-6 1000.0' (304.80m) 75 Ohms | Conductor Strand | Solid |
| Conductor Material | Steel, Copper Coated | Cable Type | Coaxial |
| Cable Group | RG-6 |
