PIM300AZ

GE Critical Power

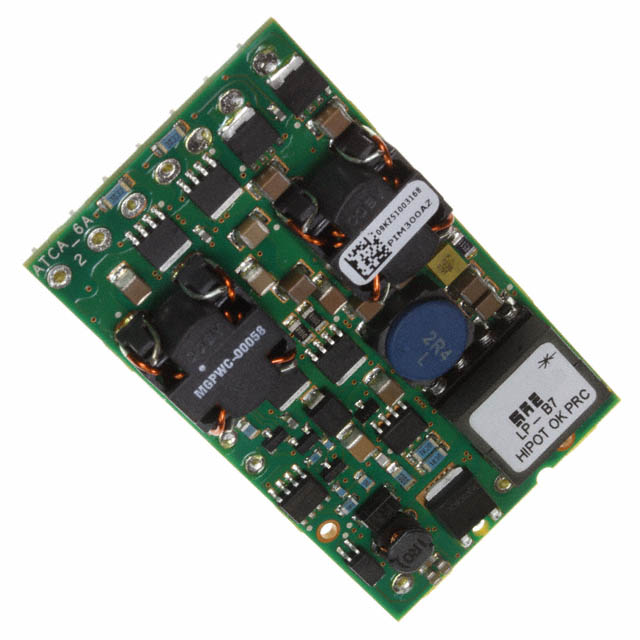

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PIM300AZ
Manufacturer/Brand:	GE Critical Power
Product description	DC DC CONVERTER -48V 300W
Datasheets:	PIM300AZ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1361 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1361 pcs

Reference Price (In US Dollars)

1 pcs: $26.385

5 pcs: $26.18

20 pcs: $25.974

40 pcs: $25.149

60 pcs: $23.912

100 pcs: $22.263

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$26.385

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PIM300AZ

Part Number	PIM300AZ	Manufacturer	GE Critical Power
Description	DC DC CONVERTER -48V 300W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1361 pcs	Data sheet	PIM300AZ.pdf
Voltage - Output 3	-	Voltage - Output 2	-
Voltage - Output 1	-48V	Voltage - Input (Min)	-38V
Voltage - Input (Max)	-75V	Type	Non-Isolated PoL Module
Size / Dimension	2.78" L x 1.45" W x 0.50" H (70.6mm x 36.8mm x 12.7mm)	Series	PIM300X
Power (Watts)	300W	Packaging	Tray
Package / Case	Module	Other Names	555-1158 CC109122322
Operating Temperature	-5°C ~ 85°C	Number of Outputs	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	OCP, OTP, OVP, UVLO	Efficiency	98%
Detailed Description	Non-Isolated PoL Module DC DC Converter 1 Output -48V 6.25A, 1.6A -38V - -75V Input	Current - Output (Max)	6.25A, 1.6A
Applications	ITE (Commercial)
