Excelsys Technologies Ltd.

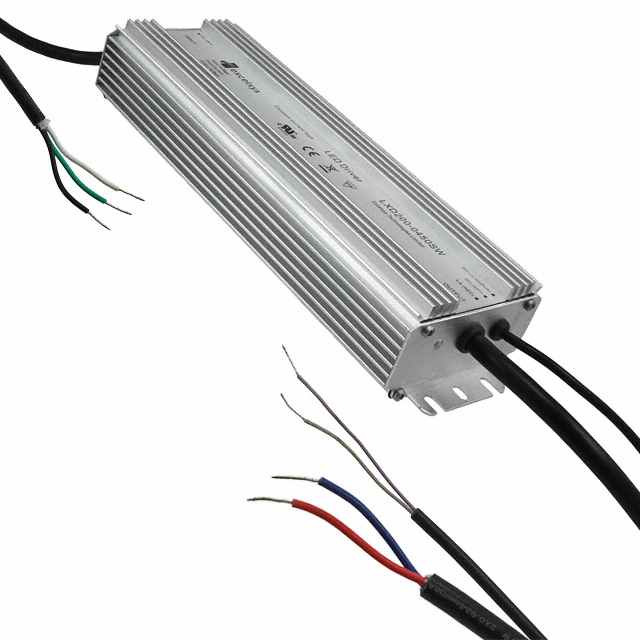

| Part Number | LXD200-0450SW | Manufacturer | Excelsys Technologies Ltd. |
|---|---|---|---|
| Description | LED DRIVER CC AC/DC 223-445V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1154 pcs | Data sheet | 1.LXD200-0450SW.pdf2.LXD200-0450SW.pdf |
| Weight | 3.2 lbs (1.5kg) | Voltage - Output | 223 ~ 445 V |
| Voltage - Isolation | 3.75kV | Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC | Type | Constant Current |
| Topology | AC DC Converter | Termination Style | Wire Leads |
| Size / Dimension | 10.43" L x 3.13" W x 1.81" H (265.0mm x 79.5mm x 46.0mm) | Series | LXD200 |
| Ratings | IP67 | Power (Watts) | 200W |
| Other Names | 633-1170 LXD200-0450SW-ND LXD2000450SW |
Operating Temperature | -35°C ~ 70°C |
| Number of Outputs | 1 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | OVP, SCP |
| Efficiency | 93.5% | Dimming | Analog |
| Detailed Description | 450mA 223 ~ 445 V Constant Current LED Driver AC DC Converter Topology 1 Output | Current - Output (Max) | 450mA |
| Approvals | CE, cULus, EN |
