PD15-22C/TR8

Everlight Electronics

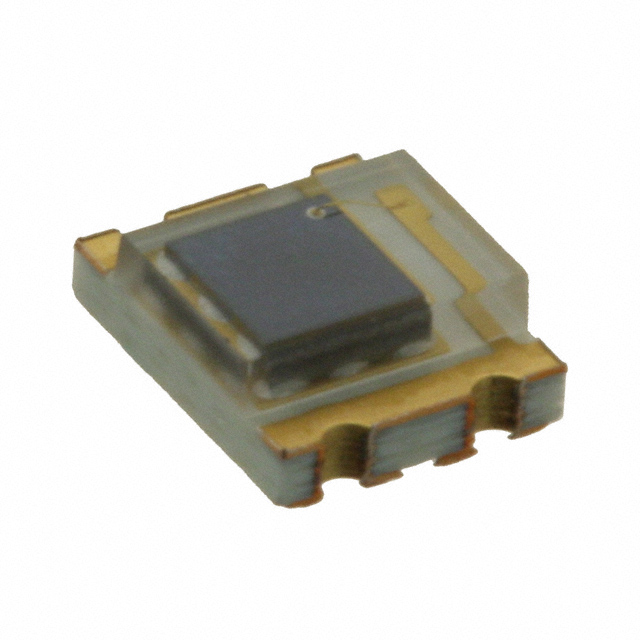

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PD15-22C/TR8
Manufacturer/Brand:	Everlight Electronics
Product description	PHOTODIODE PIN IR CLEAR FLAT SMD
Datasheets:	PD15-22C/TR8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	764527 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 764527 pcs

Reference Price (In US Dollars)

3000 pcs: $0.04

6000 pcs: $0.037

15000 pcs: $0.034

30000 pcs: $0.033

75000 pcs: $0.032

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.04

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PD15-22C/TR8

Part Number	PD15-22C/TR8	Manufacturer	Everlight Electronics
Description	PHOTODIODE PIN IR CLEAR FLAT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	764527 pcs	Data sheet	PD15-22C/TR8.pdf
Wavelength	940nm	Voltage - DC Reverse (Vr) (Max)	32V
Viewing Angle	-	Spectral Range	400nm ~ 1100nm
Series	-	Responsivity @ nm	-
Response Time	10ns	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, No Lead	Other Names	1080-1367-2 3315220004 PD1522C/TR8
Operating Temperature	-25°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	PIN
Detailed Description	Photodiode 940nm 10ns 4-SMD, No Lead	Current - Dark (Typ)	10nA
Color - Enhanced	-	Active Area	-
