ELM611(TA)

Everlight Electronics

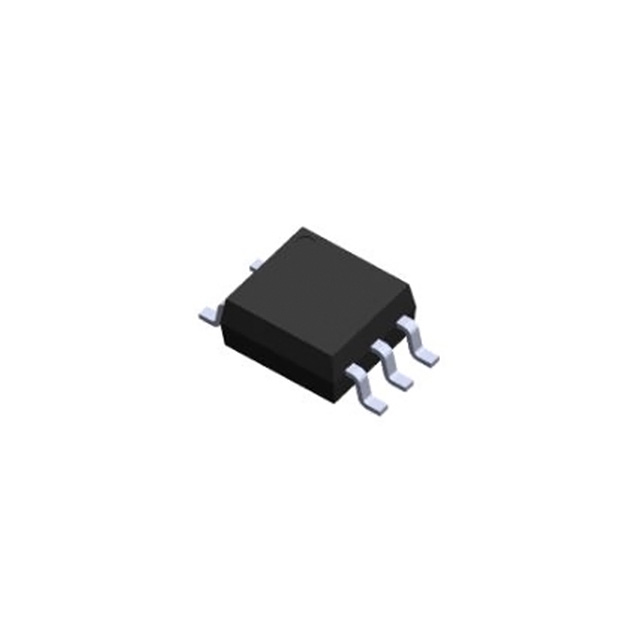

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ELM611(TA)
Manufacturer/Brand:	Everlight Electronics
Product description	OPTOISO 3.75KV OPEN COLL 5SOP
Datasheets:	ELM611(TA).pdf
Stock Condition	45901 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 45901 pcs

Reference Price (In US Dollars)

1 pcs: $0.784

10 pcs: $0.695

25 pcs: $0.515

100 pcs: $0.448

250 pcs: $0.403

500 pcs: $0.359

1000 pcs: $0.308

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.784

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ELM611(TA)

Part Number	ELM611(TA)	Manufacturer	Everlight Electronics
Description	OPTOISO 3.75KV OPEN COLL 5SOP	Lead Free Status / RoHS Status
Quantity Available	45901 pcs	Data sheet	ELM611(TA).pdf
Voltage - Supply	7V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.45V	Supplier Device Package	5-SOP
Series	-	Rise / Fall Time (Typ)	40ns, 10ns
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns	Packaging	Cut Tape (CT)
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads	Output Type	Open Collector, Schottky Clamped
Other Names	1080-1499-1	Operating Temperature	-40°C ~ 85°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	20 Weeks
Inputs - Side 1/Side 2	1/0	Input Type	DC
Detailed Description	Logic Output Optoisolator 10Mbps Open Collector, Schottky Clamped 3750Vrms 1 Channel 20kV/µs CMTI 5-SOP	Data Rate	10Mbps
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
Common Mode Transient Immunity (Min)	20kV/µs
