SG-8002JF 20.0000M-PHCB ROHS

Epson

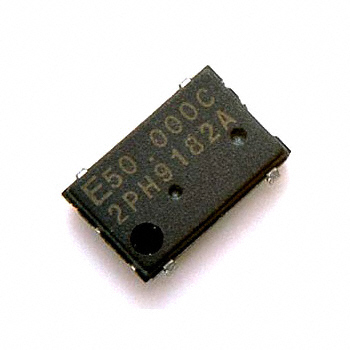

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SG-8002JF 20.0000M-PHCB ROHS
Manufacturer/Brand:	Epson
Product description	OSC XO 20MHZ CMOS SMD
Datasheets:	1.SG-8002JF 20.0000M-PHCB ROHS.pdf 2.SG-8002JF 20.0000M-PHCB ROHS.pdf 3.SG-8002JF 20.0000M-PHCB ROHS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	59273 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 59273 pcs

Reference Price (In US Dollars)

100 pcs: $0.638

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.638

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SG-8002JF 20.0000M-PHCB ROHS

Part Number	SG-8002JF 20.0000M-PHCB ROHS	Manufacturer	Epson
Description	OSC XO 20MHZ CMOS SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59273 pcs	Data sheet	1.SG-8002JF 20.0000M-PHCB ROHS.pdf 2.SG-8002JF 20.0000M-PHCB ROHS.pdf 3.SG-8002JF 20.0000M-PHCB ROHS.pdf
Voltage - Supply	5V	Type	XO (Standard)
Size / Dimension	0.280" L x 0.181" W (7.10mm x 4.60mm)	Series	SG-8002JF
Ratings	-	Package / Case	4-SOJ, 5.08mm pitch
Output	CMOS	Other Names	SG-8002JF 20.0000M-PHCB ROHS-ND SG-8002JF20.0000M-PHCBROHS
Operating Temperature	-20°C ~ 70°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.059" (1.50mm)
Function	Enable/Disable	Frequency Stability	±50ppm
Frequency	20MHz	Detailed Description	20MHz XO (Standard) CMOS Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
Current - Supply (Max)	45mA	Current - Supply (Disable) (Max)	25mA
Base Resonator	Crystal	Absolute Pull Range (APR)	-
