SI8236AA-C-IMR

Energy Micro (Silicon Labs)

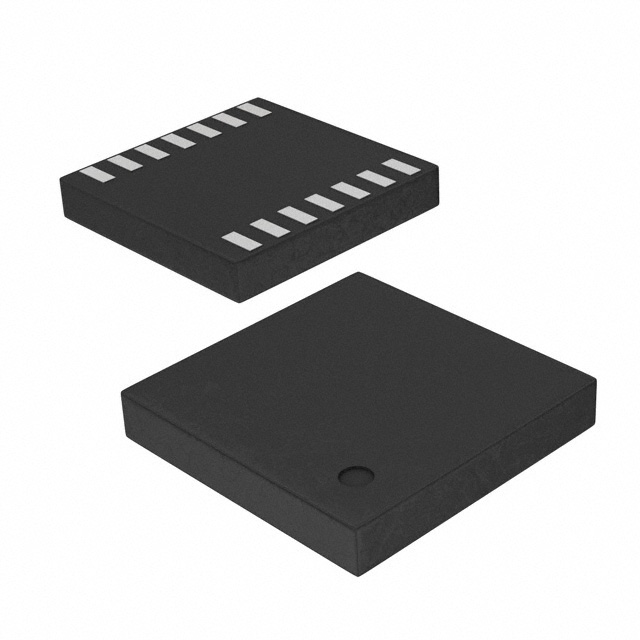

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SI8236AA-C-IMR
Manufacturer/Brand:	Energy Micro (Silicon Labs)
Product description	DGTL ISO 1KV 2CH GATE DRVR 14LGA
Datasheets:	SI8236AA-C-IMR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3946 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3946 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SI8236AA-C-IMR

Part Number	SI8236AA-C-IMR	Manufacturer	Energy Micro (Silicon Labs)
Description	DGTL ISO 1KV 2CH GATE DRVR 14LGA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3946 pcs	Data sheet	SI8236AA-C-IMR.pdf
Voltage - Supply	6.5 V ~ 24 V	Voltage - Isolation	1000Vrms
Voltage - Forward (Vf) (Typ)	-	Technology	Capacitive Coupling
Supplier Device Package	14-LGA (5x5)	Series	Automotive, AEC-Q100
Rise / Fall Time (Typ)	12ns, 12ns (Max)	Pulse Width Distortion (Max)	5.6ns
Propagation Delay tpLH / tpHL (Max)	60ns, 60ns	Packaging	Tape & Reel (TR)
Package / Case	14-VFLGA	Operating Temperature	-40°C ~ 125°C
Number of Channels	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	4A Gate Driver Capacitive Coupling 1000Vrms 2 Channel 14-LGA (5x5)	Current - Peak Output	4A
Current - Output High, Low	2A, 4A	Common Mode Transient Immunity (Min)	20kV/µs
Approvals	CQC, CSA, UR, VDE
