C4D0806N-A

Electroswitch

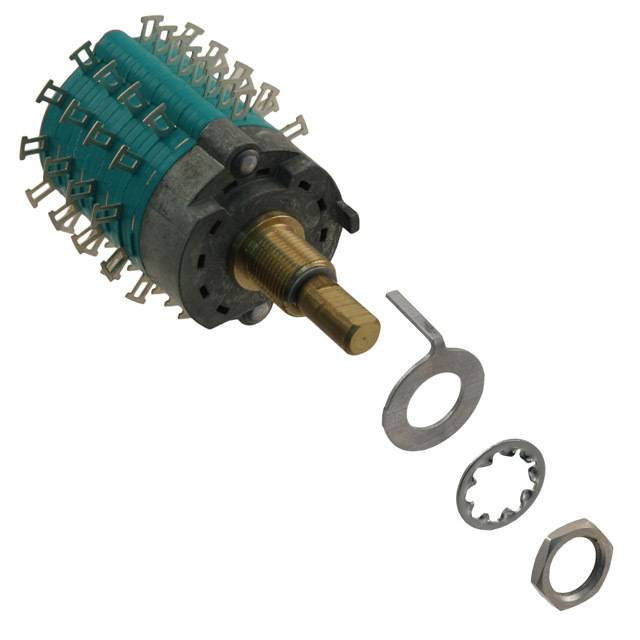

Image may be representation. See specifications for product details.

Product Overview

Part Number:	C4D0806N-A
Manufacturer/Brand:	Electroswitch
Product description	SWITCH ROTARY 2-6POS 300MA 125V
Datasheets:	C4D0806N-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1614 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1614 pcs

Reference Price (In US Dollars)

1 pcs: $21.151

10 pcs: $19.906

25 pcs: $19.284

50 pcs: $18.04

100 pcs: $17.045

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$21.151

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of C4D0806N-A

Part Number	C4D0806N-A	Manufacturer	Electroswitch
Description	SWITCH ROTARY 2-6POS 300MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1614 pcs	Data sheet	C4D0806N-A.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Series	C4
Panel Cutout Dimensions	Circular - 9.78mm Dia	Other Names	451-1022 C4D0806NA
Operating Force	-	Number of Positions	2 ~ 6
Number of Poles per Deck	2	Number of Decks	4
Mounting Type	Panel Mount	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Adjustable
Features	-	Detailed Description	Rotary Switch 2 ~ 6 Position DP6T 300mA (AC), 500mA (DC) 125VAC Panel Mount
Depth Behind Panel	41.76mm	Current Rating	300mA (AC), 500mA (DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Brass
Contact Finish	Silver	Circuit per Deck	DP6T
Angle of Throw	30°	Actuator Type	Flatted (6.35mm Dia)
Actuator Length	12.70mm
