3002D

ElectroswitchElectroswitch

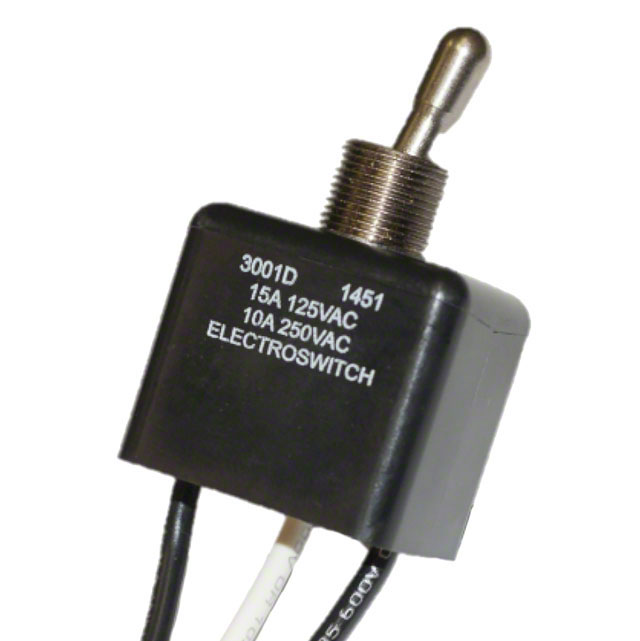

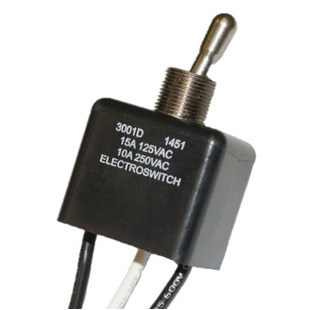

3002D Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 3002D
Manufacturer/Brand: Electroswitch
Product description SWITCH TOGGLE SPDT 15A 125VAC
Datasheets: 3002D.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5655 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 5655 pcs
Reference Price (In US Dollars)
50 pcs
$5.549
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$5.549

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 3002D

Part Number 3002D Manufacturer Electroswitch
Description SWITCH TOGGLE SPDT 15A 125VAC Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5655 pcs Data sheet 3002D.pdf
Voltage Rating - AC 125V Termination Style Wire Leads
Switch Function On-Off-On Series 3000
Panel Cutout Dimensions - Packaging Bulk
Operating Temperature -10°C ~ 65°C Mounting Type Panel Mount
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal) - Illumination Type, Color -
Illumination Non-Illuminated Features -
Electrical Life 100,000 Cycles Detailed Description Toggle Switch SPDT Panel Mount
Current Rating 15A (AC) Circuit SPDT
Bushing Thread 15/32-32 Actuator Type Standard Round
Actuator Material - Actuator Length 14.22mm
