EA DOGXL160L-7

Electronic Assembly GmbH

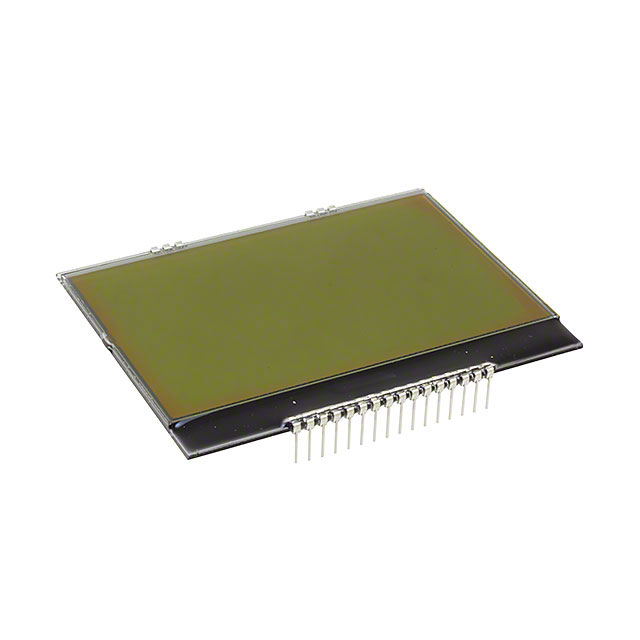

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EA DOGXL160L-7
Manufacturer/Brand:	Electronic Assembly GmbH
Product description	LCD MOD GRAPH 160X104 Y/G
Datasheets:	EA DOGXL160L-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1879 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1879 pcs

Reference Price (In US Dollars)

1 pcs: $15.562

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$15.562

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EA DOGXL160L-7

Part Number	EA DOGXL160L-7	Manufacturer	Electronic Assembly GmbH
Description	LCD MOD GRAPH 160X104 Y/G	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1879 pcs	Data sheet	EA DOGXL160L-7.pdf
Viewing Area	72.00mm W x 45.60mm H	Touchscreen	-
Series	EA DOGXL	Other Names	1481-1097
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	I²C, Parallel, SPI
Graphics Color	Gray	Dot Size	0.42mm W x 0.40mm H
Dot Pixels	160 x 104	Dot Pitch	0.43mm W x 0.41mm H
Display Type	STN - Super-Twisted Nematic	Display Mode	Reflective
Diagonal Screen Size	-	Detailed Description	Graphic LCD Display Module Reflective Gray STN - Super-Twisted Nematic I²C, Parallel, SPI 160 x 104
Backlight	Without Backlight	Background Color	Green
