EA DOGM204N-A

Electronic Assembly GmbH

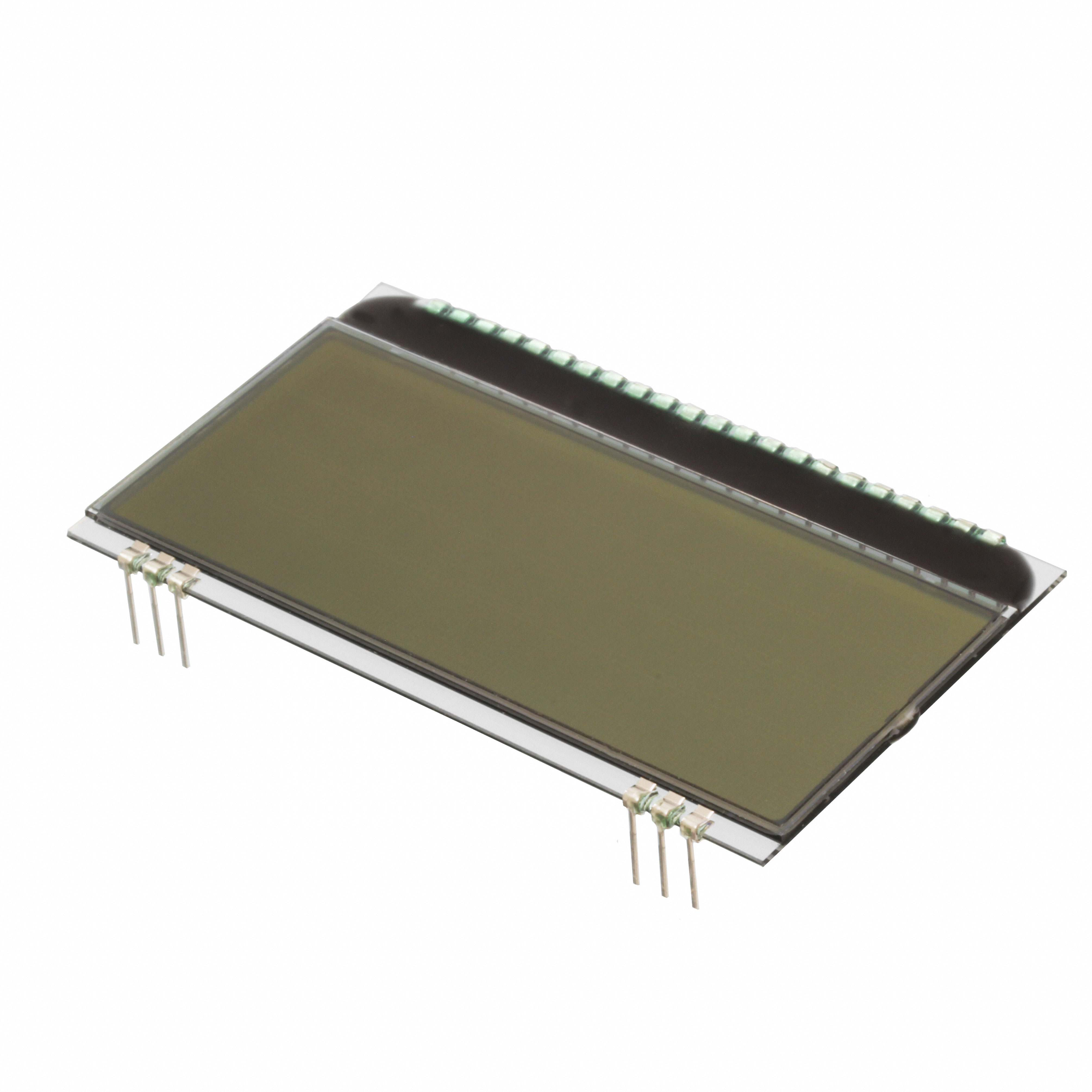

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EA DOGM204N-A
Manufacturer/Brand:	Electronic Assembly GmbH
Product description	LCD MOD CHAR 4X20 BLK/W
Datasheets:	EA DOGM204N-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4848 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4848 pcs

Reference Price (In US Dollars)

1 pcs: $8.139

10 pcs: $7.792

25 pcs: $6.06

100 pcs: $5.195

250 pcs: $4.935

500 pcs: $4.675

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$8.139

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EA DOGM204N-A

Part Number	EA DOGM204N-A	Manufacturer	Electronic Assembly GmbH
Description	LCD MOD CHAR 4X20 BLK/W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4848 pcs	Data sheet	EA DOGM204N-A.pdf
Voltage - Supply	3.3V	Viewing Area	59.00mm L x 26.00mm W
Text Color	Black	Series	EA DOG
Outline L x W x H	66.00mm x 38.10mm x 2.00mm	Other Names	1481-1085
Operating Temperature	-20°C ~ 70°C	Number of Characters	80
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	I²C, Parallel, SPI
Dot Size	0.48mm W x 0.59mm H	Display Type	FSTN - Film Super-Twisted Nematic
Display Mode	Reflective	Display Format	20 x 4
Detailed Description	Character LCD Display Module Reflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic Without Backlight I²C, Parallel, SPI 66.00mm x 38.10mm x 2.00mm	Character Size	4.83mm H x 2.46mm W
Character Format	5 x 8 Dots	Backlight	Without Backlight
Background Color	White
