HomeProductsResistorsThrough Hole ResistorsWR506170A1009J5100

WR506170A1009J5100

Electro-Films (EFI) / VishayElectro-Films (EFI) / Vishay

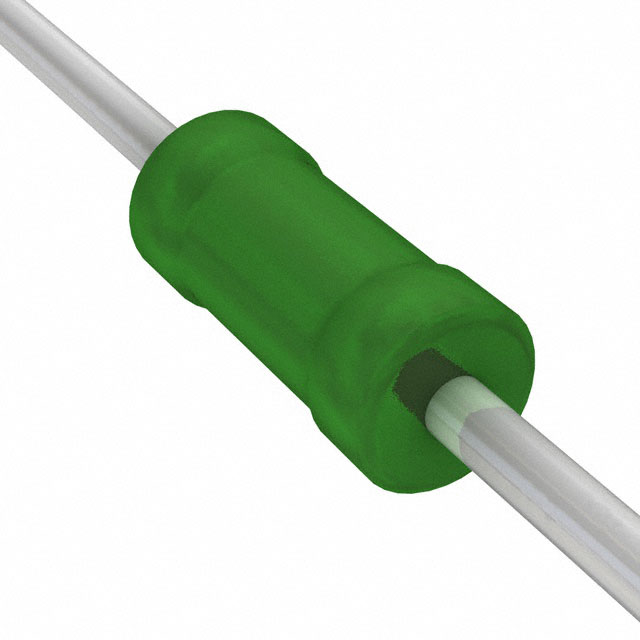

WR506170A1009J5100 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: WR506170A1009J5100
Manufacturer/Brand: Electro-Films (EFI) / Vishay
Product description RES 10 OHM 5% 3W AXIAL
Datasheets: WR506170A1009J5100.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 527958 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 527958 pcs
Reference Price (In US Dollars)
1000 pcs
$0.064
2000 pcs
$0.062
5000 pcs
$0.06
10000 pcs
$0.058
25000 pcs
$0.057
50000 pcs
$0.056
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.064

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of WR506170A1009J5100

Part Number WR506170A1009J5100 Manufacturer Electro-Films (EFI) / Vishay
Description RES 10 OHM 5% 3W AXIAL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 527958 pcs Data sheet WR506170A1009J5100.pdf
Tolerance ±5% Temperature Coefficient ±200ppm/°C
Supplier Device Package Axial Size / Dimension 0.236" Dia x 0.650" L (6.00mm x 16.50mm)
Series WR5 Resistance 10 Ohms
Power (Watts) 3W Packaging Tape & Box (TB)
Package / Case Axial Other Names BC4940TB
Operating Temperature -55°C ~ 200°C Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable Manufacturer Standard Lead Time 30 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) -
Features Pulse Withstanding Failure Rate -
Detailed Description 10 Ohms ±5% 3W Through Hole Resistor Axial Pulse Withstanding Metal Oxide Film Composition Metal Oxide Film
