VS-ETL015Y120H

Electro-Films (EFI) / Vishay

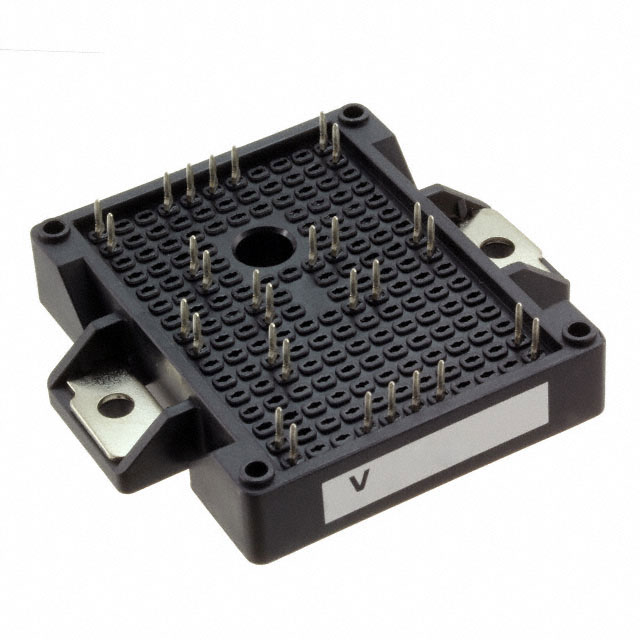

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VS-ETL015Y120H
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	IGBT 1200V 22A 89W EMIPAK-2B
Datasheets:	VS-ETL015Y120H.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1222 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1222 pcs

Reference Price (In US Dollars)

1 pcs: $29.56

10 pcs: $28.083

25 pcs: $27.344

100 pcs: $25.312

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$29.56

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VS-ETL015Y120H

Part Number	VS-ETL015Y120H	Manufacturer	Electro-Films (EFI) / Vishay
Description	IGBT 1200V 22A 89W EMIPAK-2B	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1222 pcs	Data sheet	VS-ETL015Y120H.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	3.03V @ 15V, 15A
Supplier Device Package	EMIPAK-2B	Series	-
Power - Max	89W	Package / Case	EMIPAK-2B
Other Names	VS-ETL015Y120H-ND VS-ETL015Y120HGI VSETL015Y120H	Operating Temperature	150°C (TJ)
NTC Thermistor	Yes	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	45 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	1.07nF @ 30V
Input	Standard	IGBT Type	Trench
Detailed Description	IGBT Module Trench 1200V 22A 89W Chassis Mount EMIPAK-2B	Current - Collector Cutoff (Max)	75µA
Current - Collector (Ic) (Max)	22A
