VESD03A1B-HD1-GS08

Electro-Films (EFI) / Vishay

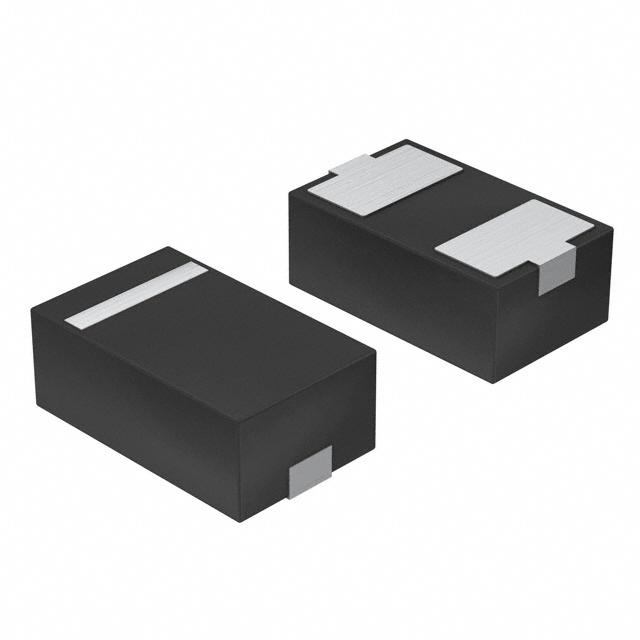

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VESD03A1B-HD1-GS08
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	TVS DIODE 3.3V 9V LLP1006-2L
Datasheets:	VESD03A1B-HD1-GS08.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1027536 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1027536 pcs

Reference Price (In US Dollars)

8000 pcs: $0.029

16000 pcs: $0.026

24000 pcs: $0.025

56000 pcs: $0.023

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.029

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VESD03A1B-HD1-GS08

Part Number	VESD03A1B-HD1-GS08	Manufacturer	Electro-Films (EFI) / Vishay
Description	TVS DIODE 3.3V 9V LLP1006-2L	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1027536 pcs	Data sheet	VESD03A1B-HD1-GS08.pdf
Voltage - Reverse Standoff (Typ)	3.3V (Max)	Voltage - Clamping (Max) @ Ipp	9V
Voltage - Breakdown (Min)	5V	Unidirectional Channels	1
Type	Zener	Supplier Device Package	LLP1006-2L
Series	-	Power Line Protection	No
Power - Peak Pulse	31W	Packaging	Tape & Reel (TR)
Package / Case	SOD-882	Other Names	751-1450-2 VESD03A1BHD1GS08
Operating Temperature	-40°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	47 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	3.5A (8/20µs)
Capacitance @ Frequency	25pF @ 1MHz	Base Part Number	VESD03A1B
Applications	General Purpose
