SQR70090ELR_GE3

Electro-Films (EFI) / Vishay

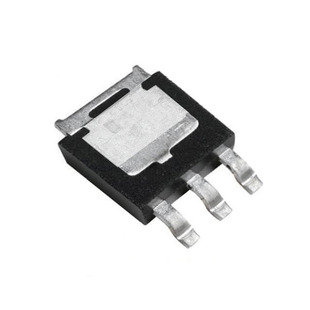

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SQR70090ELR_GE3
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	MOSFET N-CHANNEL 100V 86A DPAK
Datasheets:	SQR70090ELR_GE3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51763 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 51763 pcs

Reference Price (In US Dollars)

1 pcs: $0.61

10 pcs: $0.541

100 pcs: $0.427

500 pcs: $0.332

1000 pcs: $0.262

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.61

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SQR70090ELR_GE3

Part Number	SQR70090ELR_GE3	Manufacturer	Electro-Films (EFI) / Vishay
Description	MOSFET N-CHANNEL 100V 86A DPAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51763 pcs	Data sheet	SQR70090ELR_GE3.pdf
Vgs(th) (Max) @ Id	2.5V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	D-PAK (TO-252)
Series	Automotive, AEC-Q101, TrenchFET®	Rds On (Max) @ Id, Vgs	8.7 mOhm @ 25A, 10V
Power Dissipation (Max)	136W (Tc)	Packaging	Tube
Package / Case	TO-252-4, DPak (3 Leads + Tab)	Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	3500pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	65nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Drain to Source Voltage (Vdss)	100V	Detailed Description	N-Channel 100V 86A (Tc) 136W (Tc) Surface Mount D-PAK (TO-252)
Current - Continuous Drain (Id) @ 25°C	86A (Tc)
