SQM40022EM_GE3

Electro-Films (EFI) / Vishay

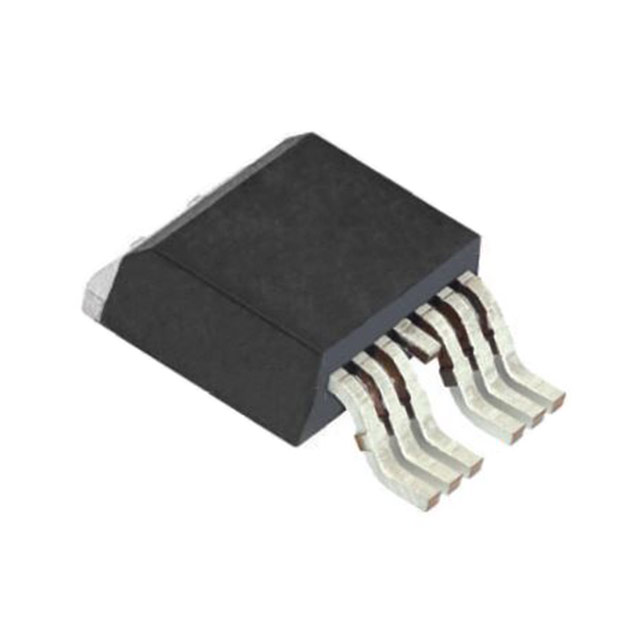

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SQM40022EM_GE3
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	MOSFET N-CHAN 40V
Datasheets:	SQM40022EM_GE3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	72587 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 72587 pcs

Reference Price (In US Dollars)

800 pcs: $0.429

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.429

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SQM40022EM_GE3

Part Number	SQM40022EM_GE3	Manufacturer	Electro-Films (EFI) / Vishay
Description	MOSFET N-CHAN 40V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72587 pcs	Data sheet	SQM40022EM_GE3.pdf
Vgs(th) (Max) @ Id	3.5V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-263-7
Series	Automotive, AEC-Q101, TrenchFET®	Rds On (Max) @ Id, Vgs	1.63 mOhm @ 35A, 10V
Power Dissipation (Max)	150W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)	Other Names	SQM40022EM_GE3TR
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	47 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	9200pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	160nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	40V	Detailed Description	N-Channel 40V 150A (Tc) 150W (Tc) Surface Mount TO-263-7
Current - Continuous Drain (Id) @ 25°C	150A (Tc)
