Electro-Films (EFI) / Vishay

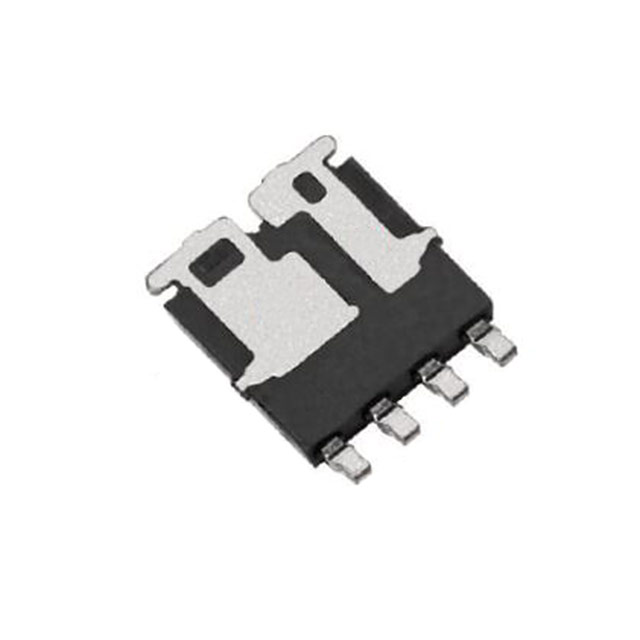

| Part Number | SQJ940EP-T1_GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET 2N-CH 40V 15A PPAK SO-8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 196132 pcs | Data sheet | SQJ940EP-T1_GE3.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | Supplier Device Package | PowerPAK® SO-8 Dual Asymmetric |
| Series | Automotive, AEC-Q101, TrenchFET® | Rds On (Max) @ Id, Vgs | 16 mOhm @ 15A, 10V |
| Power - Max | 48W, 43W | Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® SO-8 Dual | Other Names | SQJ940EP-T1-GE3 SQJ940EP-T1-GE3-ND SQJ940EP-T1_GE3-ND SQJ940EP-T1_GE3TR |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 896pF @ 20V | Gate Charge (Qg) (Max) @ Vgs | 20nC @ 20V |
| FET Type | 2 N-Channel (Dual) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | Mosfet Array 2 N-Channel (Dual) 40V 15A (Ta), 18A (Tc) 48W, 43W Surface Mount PowerPAK® SO-8 Dual Asymmetric |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 18A (Tc) |
