SQJ860EP-T1_GE3

Electro-Films (EFI) / Vishay

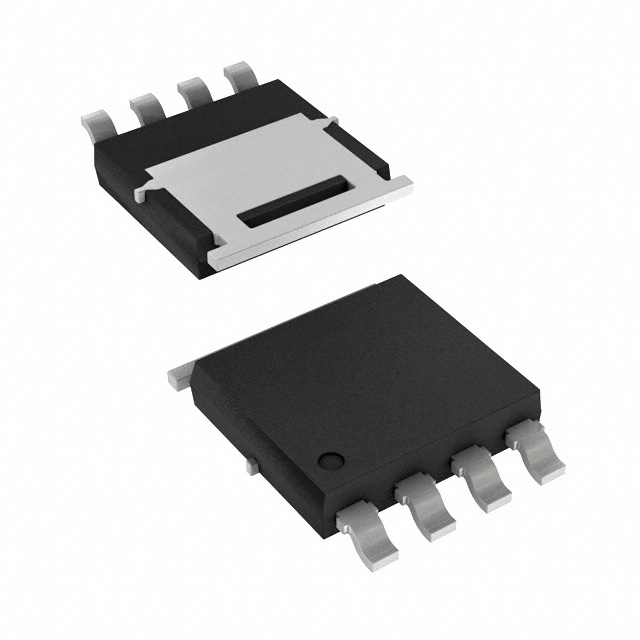

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SQJ860EP-T1_GE3
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	MOSFET N-CH 40V 60A POWERPAKSO-8
Datasheets:	SQJ860EP-T1_GE3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	101332 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 101332 pcs

Reference Price (In US Dollars)

1 pcs: $0.379

10 pcs: $0.332

100 pcs: $0.256

500 pcs: $0.19

1000 pcs: $0.152

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.379

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SQJ860EP-T1_GE3

Part Number	SQJ860EP-T1_GE3	Manufacturer	Electro-Films (EFI) / Vishay
Description	MOSFET N-CH 40V 60A POWERPAKSO-8	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	101332 pcs	Data sheet	SQJ860EP-T1_GE3.pdf
Vgs(th) (Max) @ Id	2.5V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PowerPAK® SO-8
Series	Automotive, AEC-Q101, TrenchFET®	Rds On (Max) @ Id, Vgs	6 mOhm @ 10A, 10V
Power Dissipation (Max)	48W (Tc)	Packaging	Original-Reel®
Package / Case	PowerPAK® SO-8	Other Names	SQJ860EP-T1_GE3DKR
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	2700pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	55nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	40V
Detailed Description	N-Channel 40V 60A (Tc) 48W (Tc) Surface Mount PowerPAK® SO-8	Current - Continuous Drain (Id) @ 25°C	60A (Tc)
