SIZ920DT-T1-GE3

Electro-Films (EFI) / Vishay

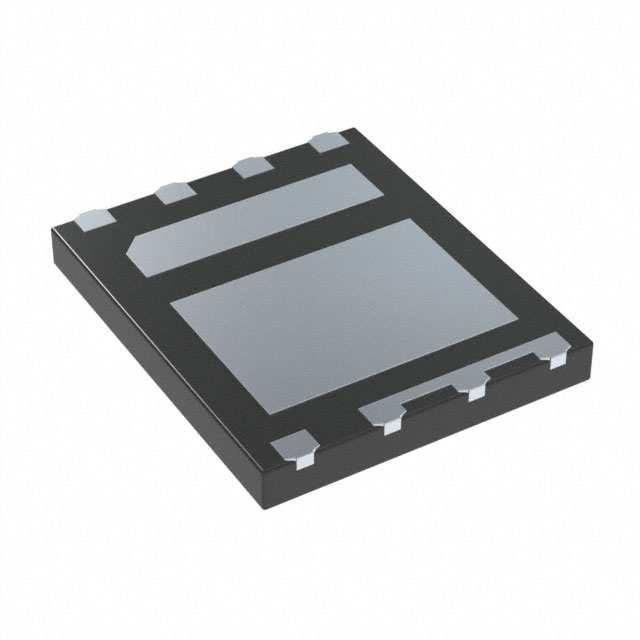

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SIZ920DT-T1-GE3
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	MOSFET 2N-CH 30V 40A PWRPAIR
Datasheets:	SIZ920DT-T1-GE3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6426 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6426 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SIZ920DT-T1-GE3

Part Number	SIZ920DT-T1-GE3	Manufacturer	Electro-Films (EFI) / Vishay
Description	MOSFET 2N-CH 30V 40A PWRPAIR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6426 pcs	Data sheet	SIZ920DT-T1-GE3.pdf
Vgs(th) (Max) @ Id	2.5V @ 250µA	Supplier Device Package	8-PowerPair® (6x5)
Series	TrenchFET®	Rds On (Max) @ Id, Vgs	7.1 mOhm @ 18.9A, 10V
Power - Max	39W, 100W	Packaging	Tape & Reel (TR)
Package / Case	8-PowerWDFN	Other Names	SIZ920DT-T1-GE3TR SIZ920DTT1GE3
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	1260pF @ 15V	Gate Charge (Qg) (Max) @ Vgs	35nC @ 10V
FET Type	2 N-Channel (Half Bridge)	FET Feature	Standard
Drain to Source Voltage (Vdss)	30V	Detailed Description	Mosfet Array 2 N-Channel (Half Bridge) 30V 40A 39W, 100W Surface Mount 8-PowerPair® (6x5)
Current - Continuous Drain (Id) @ 25°C	40A	Base Part Number	SIZ920
