IRCZ24PBF

Electro-Films (EFI) / Vishay

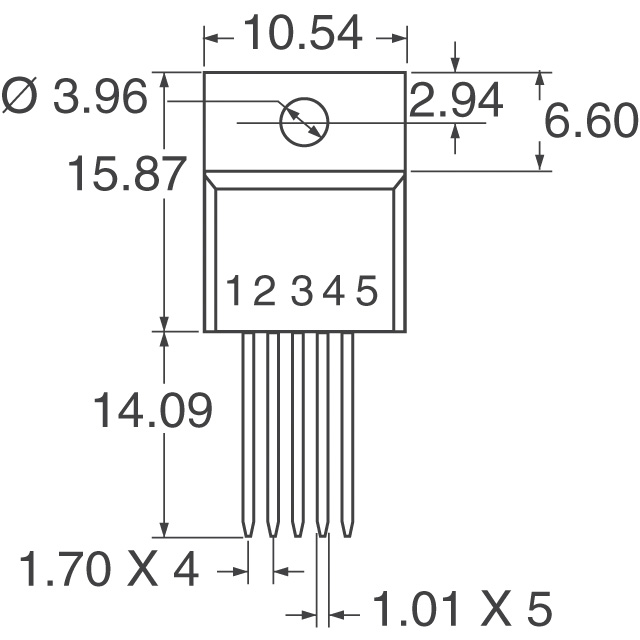

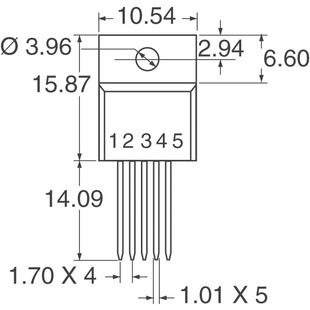

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRCZ24PBF
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	MOSFET N-CH 55V 17A TO-220-5
Datasheets:	IRCZ24PBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6337 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6337 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRCZ24PBF

Part Number	IRCZ24PBF	Manufacturer	Electro-Films (EFI) / Vishay
Description	MOSFET N-CH 55V 17A TO-220-5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6337 pcs	Data sheet	IRCZ24PBF.pdf
Vgs(th) (Max) @ Id	4V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TO-220-5
Series	HEXFET®	Rds On (Max) @ Id, Vgs	100 mOhm @ 10A, 10V
Power Dissipation (Max)	60W (Tc)	Packaging	Tube
Package / Case	TO-220-5	Other Names	*IRCZ24PBF
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	720pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	24nC @ 10V
FET Type	N-Channel	FET Feature	Current Sensing
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	55V
Detailed Description	N-Channel 55V 17A (Tc) 60W (Tc) Through Hole TO-220-5	Current - Continuous Drain (Id) @ 25°C	17A (Tc)
