ILD615-4

Electro-Films (EFI) / Vishay

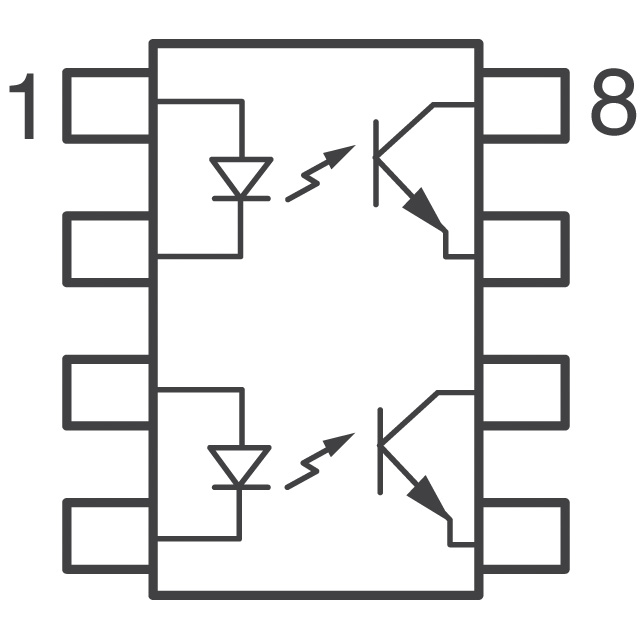

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ILD615-4
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	OPTOISOLTR 5.3KV 2CH TRANS 8-DIP
Datasheets:	ILD615-4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	45035 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 45035 pcs

Reference Price (In US Dollars)

1 pcs: $0.679

10 pcs: $0.552

25 pcs: $0.425

100 pcs: $0.382

250 pcs: $0.34

500 pcs: $0.289

1000 pcs: $0.238

2500 pcs: $0.226

5000 pcs: $0.221

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.679

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ILD615-4

Part Number	ILD615-4	Manufacturer	Electro-Films (EFI) / Vishay
Description	OPTOISOLTR 5.3KV 2CH TRANS 8-DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	45035 pcs	Data sheet	ILD615-4.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	-
Turn On / Turn Off Time (Typ)	3µs, 2.3µs	Supplier Device Package	8-DIP
Series	-	Rise / Fall Time (Typ)	2µs, 2µs
Packaging	Tube	Package / Case	8-DIP (0.300", 7.62mm)
Output Type	Transistor	Other Names	751-1322-5 751-1322-5-ND ILD615-4GI ILD615-4GI-ND
Operating Temperature	-55°C ~ 100°C	Number of Channels	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 5300Vrms 2 Channel 8-DIP
Current Transfer Ratio (Min)	160% @ 10mA	Current Transfer Ratio (Max)	320% @ 10mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	60mA
