ILD55

Electro-Films (EFI) / Vishay

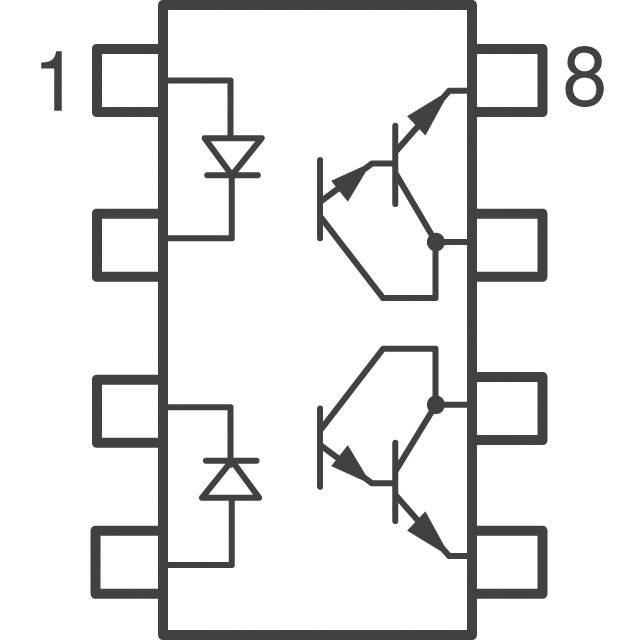

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ILD55
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	OPTOISO 5.3KV 2CH DARLNG 8-DIP
Datasheets:	ILD55.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36905 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 36905 pcs

Reference Price (In US Dollars)

1 pcs: $0.957

10 pcs: $0.847

25 pcs: $0.628

100 pcs: $0.546

250 pcs: $0.492

500 pcs: $0.437

1000 pcs: $0.376

2500 pcs: $0.355

5000 pcs: $0.341

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.957

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ILD55

Part Number	ILD55	Manufacturer	Electro-Films (EFI) / Vishay
Description	OPTOISO 5.3KV 2CH DARLNG 8-DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36905 pcs	Data sheet	ILD55.pdf
Voltage - Output (Max)	55V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.25V	Vce Saturation (Max)	1V
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	8-DIP
Series	-	Rise / Fall Time (Typ)	10µs, 35µs
Packaging	Tube	Package / Case	8-DIP (0.300", 7.62mm)
Output Type	Darlington	Other Names	751-1319-5 751-1319-5-ND ILD55GI ILD55GI-ND
Operating Temperature	-55°C ~ 100°C	Number of Channels	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Darlington Output 5300Vrms 2 Channel 8-DIP
Current Transfer Ratio (Min)	100% @ 10mA	Current Transfer Ratio (Max)	-
Current - Output / Channel	125mA	Current - DC Forward (If) (Max)	60mA
