DG333ADJ-E3

Electro-Films (EFI) / Vishay

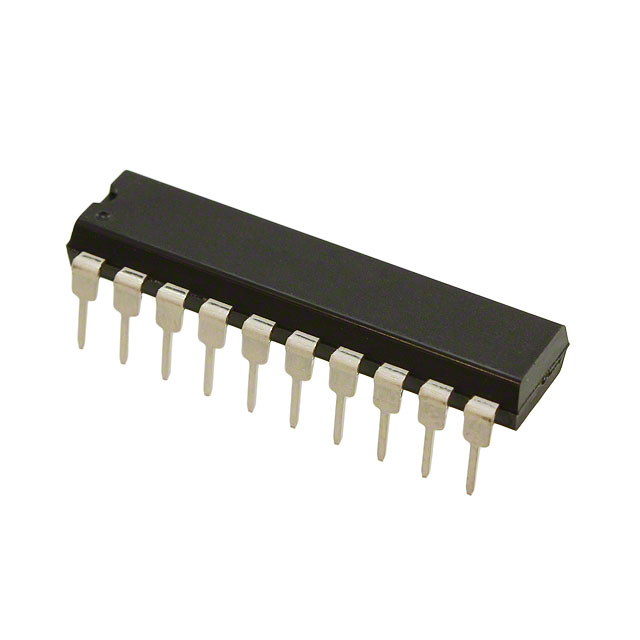

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DG333ADJ-E3
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	IC SWITCH QUAD SPDT 20DIP
Datasheets:	DG333ADJ-E3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21342 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 21342 pcs

Reference Price (In US Dollars)

1 pcs: $1.821

10 pcs: $1.636

25 pcs: $1.547

100 pcs: $1.341

250 pcs: $1.272

500 pcs: $1.141

1000 pcs: $0.962

2500 pcs: $0.914

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.821

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DG333ADJ-E3

Part Number	DG333ADJ-E3	Manufacturer	Electro-Films (EFI) / Vishay
Description	IC SWITCH QUAD SPDT 20DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21342 pcs	Data sheet	DG333ADJ-E3.pdf
Voltage - Supply, Single (V+)	5 V ~ 40 V	Voltage - Supply, Dual (V±)	±4 V ~ 22 V
Switch Time (Ton, Toff) (Max)	175ns, 145ns	Switch Circuit	SPDT
Supplier Device Package	20-DIP	Series	-
Packaging	Tube	Package / Case	20-DIP (0.300", 7.62mm)
Other Names	DG333ADJE3	Operating Temperature	-40°C ~ 85°C (TA)
On-State Resistance (Max)	45 Ohm	Number of Circuits	1
Multiplexer/Demultiplexer Circuit	2:1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	1 Circuit IC Switch 2:1 45 Ohm 20-DIP	Current - Leakage (IS(off)) (Max)	250pA
Crosstalk	-80dB @ 1MHz	Charge Injection	10pC
Channel-to-Channel Matching (ΔRon)	2 Ohm (Max)	Channel Capacitance (CS(off), CD(off))	8pF
Base Part Number	DG333	-3db Bandwidth	-
