Electro-Films (EFI) / Vishay

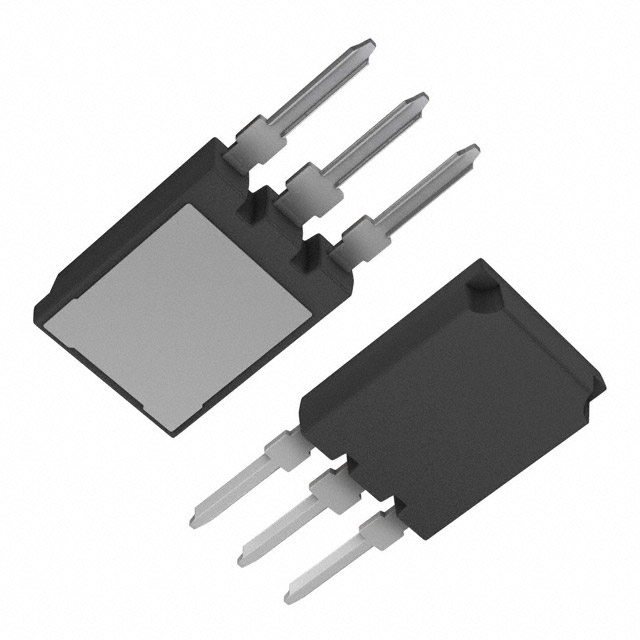

| Part Number | 70TPS16 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | SCR PH CONTR 1600V 70A SUPER-247 | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 17604 pcs | Data sheet | 70TPS16.pdf |
| Voltage - On State (Vtm) (Max) | 1.4V | Voltage - Off State | 1.6kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V | Supplier Device Package | SUPER-247 (TO-274AA) |
| Series | - | SCR Type | Standard Recovery |
| Packaging | Tube | Package / Case | TO-274AA |
| Other Names | *70TPS16 VS-70TPS16 VS-70TPS16-ND VS70TPS16 VS70TPS16-ND |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant | Detailed Description | SCR 1.6kV 75A Standard Recovery Through Hole SUPER-247 (TO-274AA) |
| Current - On State (It (RMS)) (Max) | 75A | Current - On State (It (AV)) (Max) | 70A |
| Current - Off State (Max) | 1mA | Current - Non Rep. Surge 50, 60Hz (Itsm) | 1400A @ 50Hz |
| Current - Hold (Ih) (Max) | 200mA | Current - Gate Trigger (Igt) (Max) | 100mA |
| Base Part Number | 70TPS* |
