20L15T

Electro-Films (EFI) / VishayElectro-Films (EFI) / Vishay

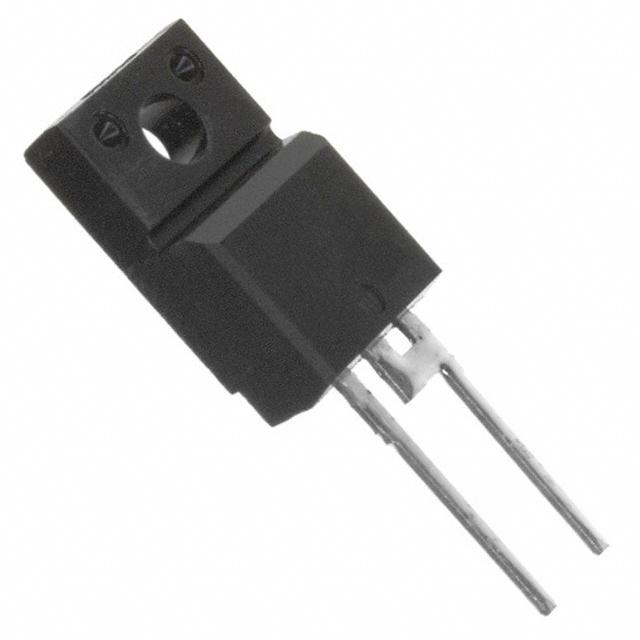

20L15T Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 20L15T
Manufacturer/Brand: Electro-Films (EFI) / Vishay
Product description DIODE SCHOTTKY 15V 20A TO220AC
Datasheets: 20L15T.pdf
RoHs Status Contains lead / RoHS non-compliant
Stock Condition 5325 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5325 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 20L15T

Part Number 20L15T Manufacturer Electro-Films (EFI) / Vishay
Description DIODE SCHOTTKY 15V 20A TO220AC Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 5325 pcs Data sheet 20L15T.pdf
Voltage - Forward (Vf) (Max) @ If 410mV @ 19A Voltage - DC Reverse (Vr) (Max) 15V
Supplier Device Package TO-220AC Speed Fast Recovery = 200mA (Io)
Series - Packaging Tube
Package / Case TO-220-2 Other Names *20L15T
VS-20L15T
VS-20L15T-ND
VS20L15T
VS20L15T-ND
Operating Temperature - Junction -55°C ~ 125°C Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Diode Type Schottky Detailed Description Diode Schottky 15V 20A Through Hole TO-220AC
Current - Reverse Leakage @ Vr 10mA @ 15V Current - Average Rectified (Io) 20A
Capacitance @ Vr, F - Base Part Number 20L15
