EPCOS

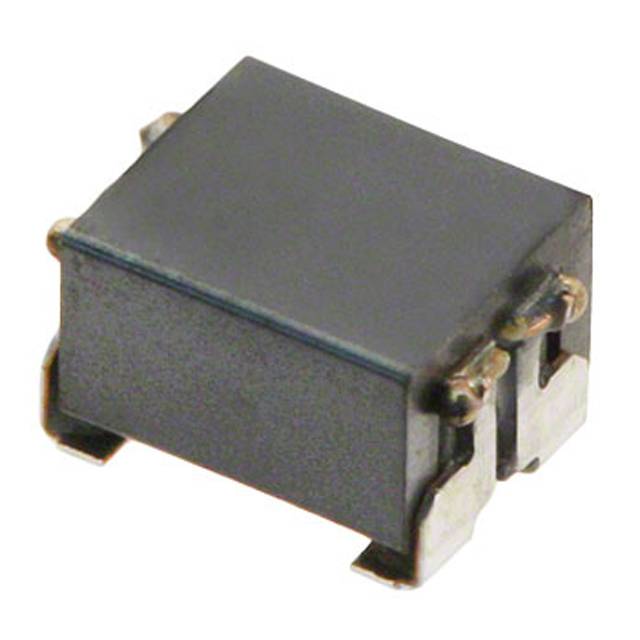

| Part Number | B82789C513N1 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CMC 51UH 250MA 2LN SMD AEC-Q200 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86513 pcs | Data sheet | B82789C513N1.pdf |
| Voltage Rating - DC | 80V | Voltage Rating - AC | 42V |
| Size / Dimension | 0.205" L x 0.126" W (5.20mm x 3.20mm) | Series | B82789 |
| Ratings | AEC-Q200 | Packaging | Tape & Reel (TR) |
| Package / Case | Horizontal, 4 L-Lead | Other Names | 495-5754-2 B82789C 513N 1 B82789C513N1-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Lines | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 51µH @ 100kHz |
| Height (Max) | 0.118" (3.00mm) | Filter Type | Signal Line |
| Features | - | Detailed Description | 51µH @ 100kHz 2 Line Common Mode Choke Surface Mount 250mA DCR 550 mOhm |
| DC Resistance (DCR) (Max) | 550 mOhm | Current Rating (Max) | 250mA |
| Approvals | - |
