EPCOS

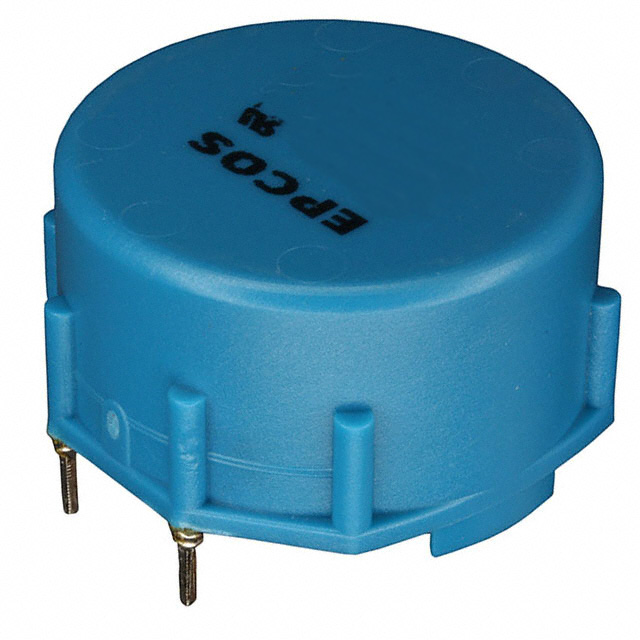

| Part Number | B82725A2602N001 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CMC 3.9MH 6A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11997 pcs | Data sheet | B82725A2602N001.pdf |
| Voltage Rating - DC | - | Voltage Rating - AC | 250V |
| Size / Dimension | 1.732" L x 1.669" W (44.00mm x 42.40mm) | Series | B82725 |
| Ratings | - | Packaging | Tray |
| Package / Case | Horizontal, 4 PC Pin | Other Names | 495-2758 B82725A2602N 1 B82725A2602N 1 B82725A2602N1 |
| Operating Temperature | -40°C ~ 125°C | Number of Lines | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 34 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 3.9mH @ 10kHz | Height (Max) | 0.984" (25.00mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 3.9mH @ 10kHz 2 Line Common Mode Choke Through Hole 6A DCR 40 mOhm (Typ) | DC Resistance (DCR) (Max) | 40 mOhm (Typ) |
| Current Rating (Max) | 6A | Approvals | ENEC, UR, VDE |
