EPCOS

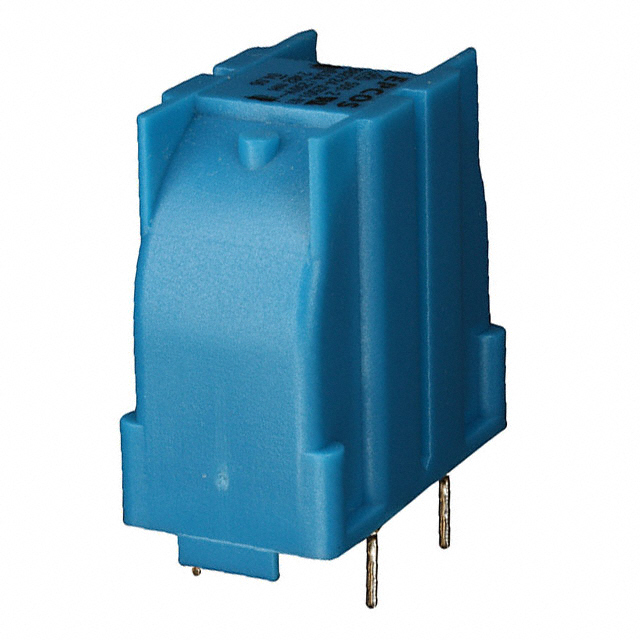

| Part Number | B82724J2501N001 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CMC 82MH 500MA 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30401 pcs | Data sheet | B82724J2501N001.pdf |
| Voltage Rating - DC | - | Voltage Rating - AC | 250V |
| Size / Dimension | 1.232" L x 0.728" W (31.30mm x 18.50mm) | Series | B82724 |
| Ratings | - | Packaging | Tray |
| Package / Case | Vertical, 4 PC Pin | Other Names | 495-2754 B82724J2501N 1 B82724J2501N 1 B82724J2501N1 |
| Operating Temperature | -40°C ~ 125°C | Number of Lines | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 82mH @ 10kHz |
| Height (Max) | 1.307" (33.20mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 82mH @ 10kHz 2 Line Common Mode Choke Through Hole 500mA DCR 2.3 Ohm (Typ) |
| DC Resistance (DCR) (Max) | 2.3 Ohm (Typ) | Current Rating (Max) | 500mA |
| Approvals | ENEC, UR, VDE |
