EPCOS

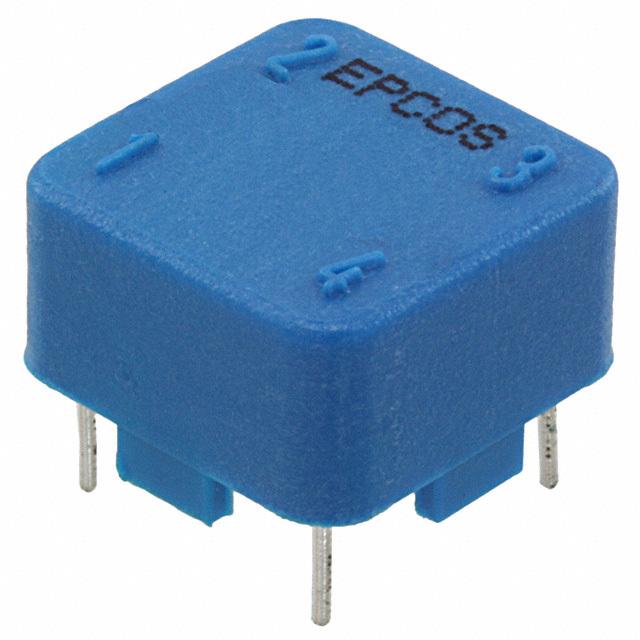

| Part Number | B82720A2601N040 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CMC 4.4MH 600MA 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33084 pcs | Data sheet | B82720A2601N040.pdf |
| Voltage Rating - DC | - | Voltage Rating - AC | 250V |
| Size / Dimension | 0.559" L x 0.559" W (14.20mm x 14.20mm) | Series | B82720 |
| Ratings | - | Packaging | Tray |
| Package / Case | Horizontal, 4 PC Pin | Other Names | 495-5717 B82720A2601N 40 B82720A2601N40 B82720A2601N40-ND B82720A2601N40Z99 |
| Operating Temperature | -40°C ~ 125°C | Number of Lines | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 4.4mH @ 10kHz | Height (Max) | 0.380" (9.65mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 4.4mH @ 10kHz 2 Line Common Mode Choke Through Hole 600mA DCR 400 mOhm (Typ) | DC Resistance (DCR) (Max) | 400 mOhm (Typ) |
| Current Rating (Max) | 600mA | Approvals | ENEC, UR, VDE |
