EPCOS
| Part Number | B65887E0160A041 | Manufacturer | EPCOS |
|---|---|---|---|

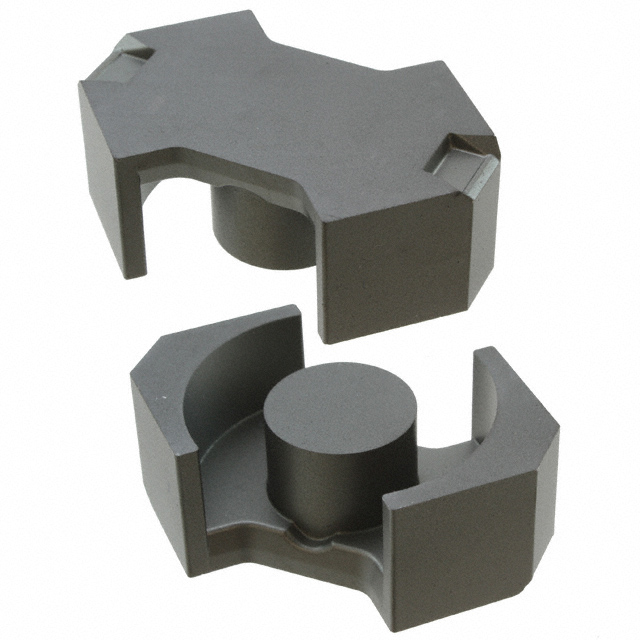

| Description | FERRITE CORE RM 160NH N41 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12024 pcs | Data sheet | B65887E0160A041.pdf |
| Width | 19.00mm | Tolerance | ±3% |
| Supplier Device Package | RM 14 | Series | B65887 |
| Other Names | 495-5332 B65887E 160A 41 B65887E160A41 B65887E160A41-ND |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Minimum Core Cross Section (Amin) mm² | 170 | Material | N41 |
| Manufacturer Standard Lead Time | 24 Weeks | Length | 42.20mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Initial Permeability (µi) | 2800 |
| Inductance Factor (Al) | 160nH | Height | 15.10mm |
| Gap | Gapped | Finish | Uncoated |
| Effective Permeability (µe) | 45 | Effective Magnetic Volume (Ve) mm³ | 14000 |
| Effective Length (le) mm | 70 | Effective Area (Ae) mm² | 200 |
| Diameter | - | Core Type | RM |
| Core Factor (ΣI/A) mm1 | 0.35 |
