EPCOS
| Part Number | B65815E0400J041 | Manufacturer | EPCOS |
|---|---|---|---|

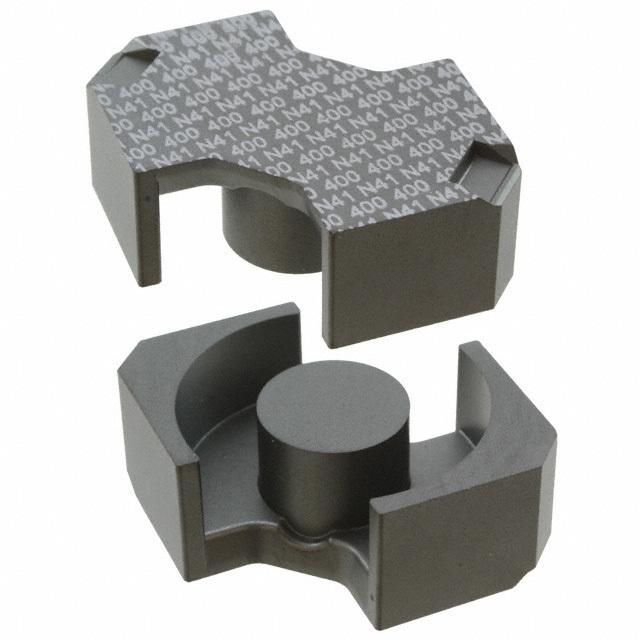

| Description | FERRITE CORE RM 400NH N41 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17781 pcs | Data sheet | B65815E0400J041.pdf |
| Width | 16.10mm | Tolerance | ±5% |
| Supplier Device Package | RM 12 | Series | B65815 |
| Other Names | 495-5296 B65815E 400J 41 B65815E400J41 B65815E400J41-ND |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Minimum Core Cross Section (Amin) mm² | 125 | Material | N41 |
| Manufacturer Standard Lead Time | 24 Weeks | Length | 37.60mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Initial Permeability (µi) | 2800 |
| Inductance Factor (Al) | 400nH | Height | 12.30mm |
| Gap | Gapped | Finish | Uncoated |
| Effective Permeability (µe) | 124 | Effective Magnetic Volume (Ve) mm³ | 8320 |
| Effective Length (le) mm | 57 | Effective Area (Ae) mm² | 146 |
| Diameter | - | Core Type | RM |
| Core Factor (ΣI/A) mm1 | 0.39 |
